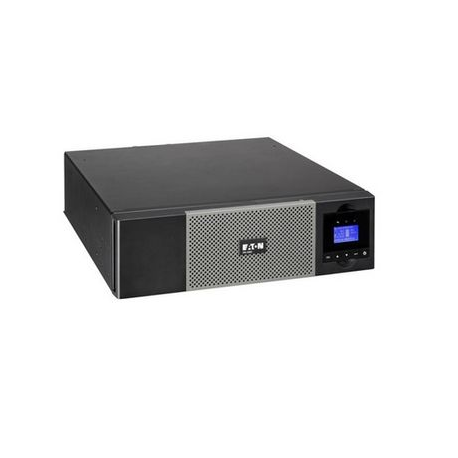

Eaton 5PX G2 - UPS (rack-mountable / external) - 3000 Watt - 3000 VA - RS-232, USB - output connectors: 10 - 2U
Eaton 5PX G2 - UPS (rack-mountable / external) - 3000 Watt - 3000 VA - RS-232, USB - output connectors: 10 - 2U
Manufacturer
•EATON
Reference
•5PX3000IRT2UG2
Article
•1863634
Intrastat
•84734080
Shipping weight
•41.22 kg
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
UPS Technology
Line interactive
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Provided
50/60 Hz ± 0.1Hz
Frequency Required
47 - 70 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity
3000 Watt / 3000 VA
Output Waveform
Sinewave
Run Time (Up To)
68 min at 300 Watts ¦ 39 min at 500 Watts ¦ 23 min at 800 Watts ¦ 13 min at 1200 Watts
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Included Accessories
Tower stand
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, hot-swappable batteries
Compliant Standards
FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cTUVus, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, UL 2900-1, IEC 62443-4-2, UKCA
ENERGY STAR
Yes
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dBA
Width
43.8 cm
Depth
60.3 cm
Height
8.55 cm
Weight
31.7 kg
