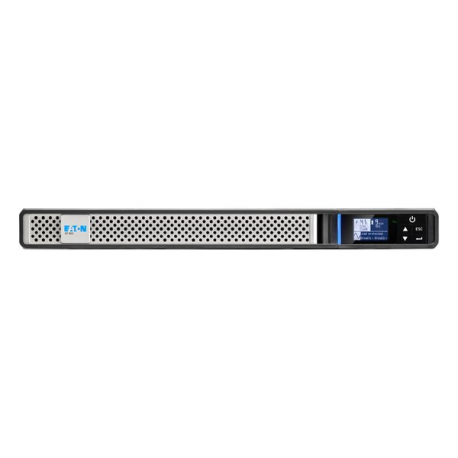

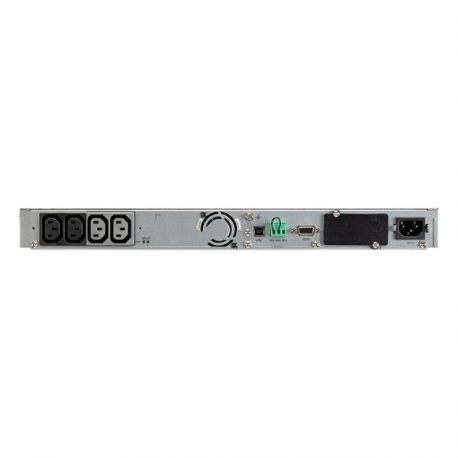

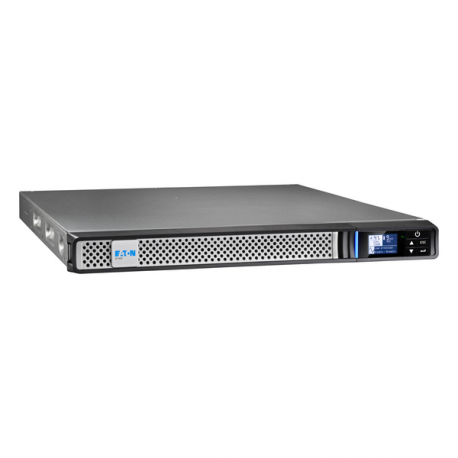

Eaton 5P 850i - Gen 2 - UPS (rack-mountable) - AC 200 / 208 / 220 / 230 / 240 V - 680 Watt - 850 VA - 1-phase - valve regulated lead-acid (VRLA) - 7 Ah - RS-232, USB - output connectors: 4 - 1U - 19" - black / silver
Eaton 5P 850i - Gen 2 - UPS (rack-mountable) - AC 200 / 208 / 220 / 230 / 240 V - 680 Watt - 850 VA - 1-phase - valve regulated lead-acid (VRLA) - 7 Ah - RS-232, USB - output connectors: 4 - 1U - 19" - black / silver
Manufacturer
•EATON
Reference
•5P850IRG2
Article
•4127840
Intrastat
•84734080
Shipping weight
•13.7 kg
Device Type
UPS - rack-mountable
Height (Rack Units)
1U
Rack Size
19"
Colour
Black/silver
UPS Technology
Line interactive
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
47 - 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity
680 Watt / 850 VA
Output Waveform
Sinewave
Efficiency
98%
Power Factor (PF)
0.8
Quantity
4
Technology
Valve regulated lead-acid (VRLA) Lead Acid
Voltage Provided
6 V
Capacity
7 Ah
Transfer Time
13 ms
Features
Maintenance free, sealed
Remote Management Interface
RS-232, USB
Interfaces
1 x remote power (on/off) - mini terminal block ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x dry contact output

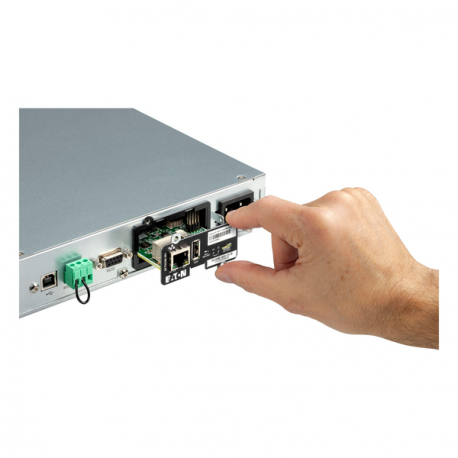

Expansion Slots
1 (total) / 1 (free) x Communication slot
Included Accessories
Cable locking system
Cables Included
USB cable - external ¦ 2 x power cable (IEC) - external
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), short-circuit protection, hot-swappable batteries, remote reboot, 30A fuse
Compliant Standards
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, EMC, IEC 62040-3, RoHS, KCC, WEEE, cTUVus, CSA 22.2, LVD, IP20, BIS, FCC Part 15 Class B, CISPR 32 Class B, CM, IEC/EN 61000-3-3, UKCA, UKR, IEC/EN 62040-1, IEC/EN 62040-2, EN IEC 61000-3-2, IEC/EN 62040-3
Service & Support
Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
35 dB
Width
43.8 cm
Depth
50.9 cm
Height
4.32 cm
Weight
13.7 kg
