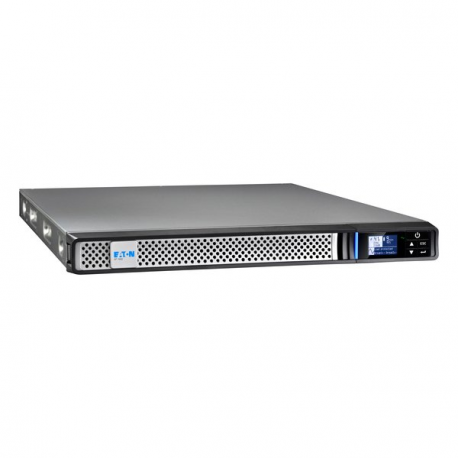

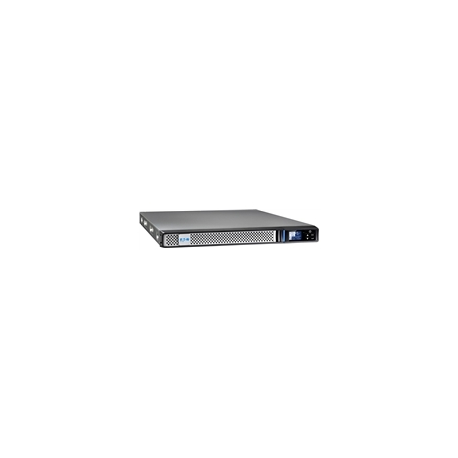

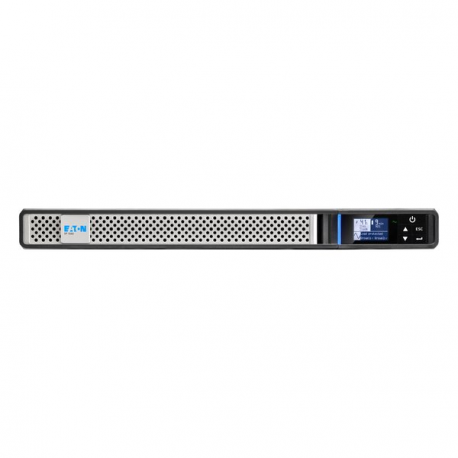

Eaton 5P 1550iR - Gen 2 - UPS (rack-mountable) - AC 200/208/220/230/240 V - 1350 Watt - 1550 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 6 - 1U - 19" - black/silver
Eaton 5P 1550iR - Gen 2 - UPS (rack-mountable) - AC 200/208/220/230/240 V - 1350 Watt - 1550 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 6 - 1U - 19" - black/silver
Manufacturer
•EATON
Reference
•5P1550IRG2
Article
•3463117
Intrastat
•84734080
Shipping weight
•18.7 kg
Device Type
UPS - rack-mountable
Height (Rack Units)
1U
Rack Size
19"
Colour
Black/silver
UPS Technology
Line interactive
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
47 - 70 Hz
Input Connectors
1 x power IEC 60320 C14

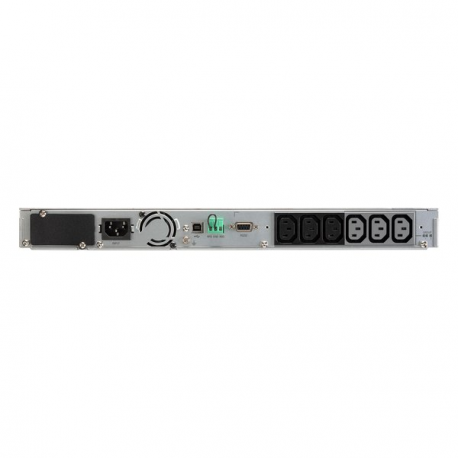

Power Output Connectors Details
6 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Max Electric Current
10 A
Power Capacity
1350 Watt / 1550 VA
Output Waveform
Sinewave
Efficiency
98.2%
Quantity
6
Technology
Lead Acid
Voltage Provided
6 V
Capacity
9 Ah
Remote Management Interface
RS-232, USB
Interfaces
1 x remote power (on/off) - mini terminal block
1 x management (USB) - 4 pin USB Type B
1 x management (RS-232) - RJ-45
2 x dry contact output

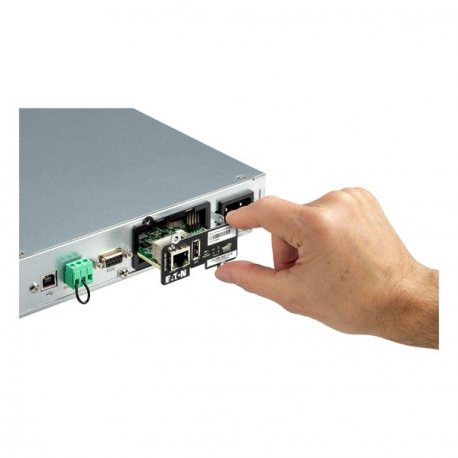

Expansion Slots
1 (total) / 1 (free) x Communication slot
Included Accessories
Cable locking system
Cables Included
USB cable - external
2 x power cable (IEC) - external
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), automatic shut down, LCD display, remote ON/OFF function, deep discharge protection
Compliant Standards
LVD, CB, EMC, RoHS, WEEE, IEC/EN 62040-1, IEC/EN 62040-2, IEC 62040-3, UL 1778, CSA 22.2, UKCA, CM, UKR, KCC, cTUVus, BIS
Service & Support
Limited warranty - electrical components and functions - 3 years
Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
35 dB
Width
43.8 cm
Depth
55.5 cm
Height
4.32 cm
Weight
18.7 kg
