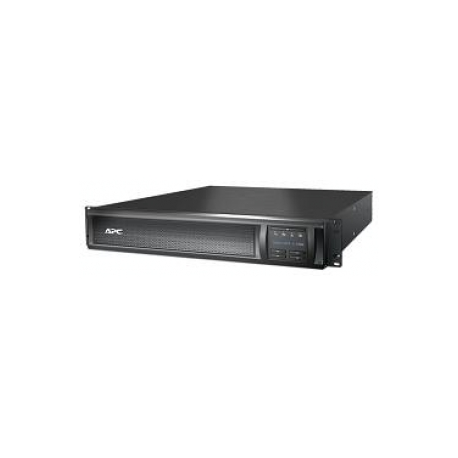

APC Smart-UPS X 1500 Rack / Tower LCD - UPS (rack-mountable) - AC 230 V - 1200 Watt - 1500 VA - Ethernet, RS-232, USB - output connectors: 8 - 2U - black - for P / N: AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR3103, AR3103SP, AR3106, AR3106SP

images are for illustrative purposes only

New

Article: 22444 Intrastat: 84734080 SKU: SMX1500RMI2UNC
Pricing and stock details are available to registered users only.
  • Remote UPS management
  • High online efficiency
  • Green mode
  • High frequency design
  • Energy meter
  • Intuitive LCD interface
  • Auto recognition of external batteries
  • Multiple switched outlet groups
  • Pure sine wave output on battery
  • Preinstalled network management card
  • Scalable runtime
  • Cold-start capable
  • Plug-and-Play external batteries
  • SmartSlot
  • Temperature-compensated battery charging
Remote UPS management enables management of your UPS by connecting it directly to the network. Attach the device to an emergency power off (EPO) system so that power can be turned off in an emergency situation. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. UPS recognizes when external battery packs are attached and automatically adjusts runtime. Multiple outlet groups may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding.



Device TypeUPS - rack-mountable
Battery Enclosure TypePlug-in module
Height (Rack Units)2U
ColourBlack
UPS TechnologyLine interactive
Input VoltageAC 230 V
Input Voltage RangeAC 160 - 285 V
Input Voltage Range (Adjustable)AC 151 - 302 V
Frequency Provided47 - 63 Hz
Frequency Required50/60 Hz
Input ConnectorsPower IEC 60320 C14

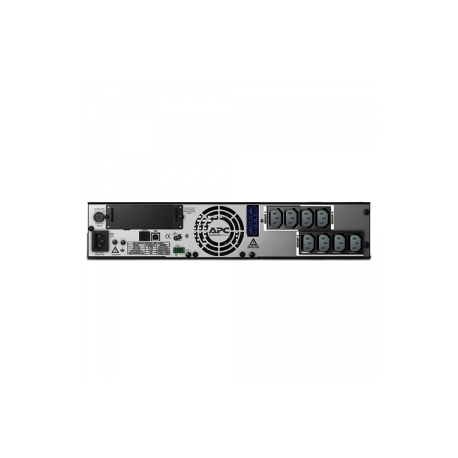

Power Output Connectors Details8 x power IEC 60320 C13
Output VoltageAC 230 V 47 - 63 Hz
Power Capacity1200 Watt / 1500 VA
Output WaveformSinewave
Surge SuppressionYes
Surge Energy Rating645 Joules
Circuit ProtectionCircuit breaker
Quantity1
TechnologyLead Acid
Run Time (Up To)5.8 min at full load ¦ 17.2 min at half load
Recharge Time3 hours
Remote Management InterfaceEthernet, RS-232, USB
Interfaces1 x management (RS-232) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots1 (total) / 0 (free) x SmartSlot
Cables IncludedSerial cable - external ¦ USB cable - external ¦ Power cable - integrated - 1.8 m
Rack Mounting KitIncluded
FeaturesAudible alarm, emergency power off, LCD display
Compliant StandardsC-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1
Software IncludedAPC PowerChute Business Edition
Service & SupportLimited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature0 °C
Max Operating Temperature45 °C
Humidity Range Operating0 - 95%
Sound Emission40 dBA
Width8.9 cm
Depth49 cm
Height43.2 cm
Weight24.8 kg
Shipping Width24.6 cm
Shipping Depth62 cm
Shipping Height58.9 cm
Shipping Weight30 kg
Designed ForP/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610
