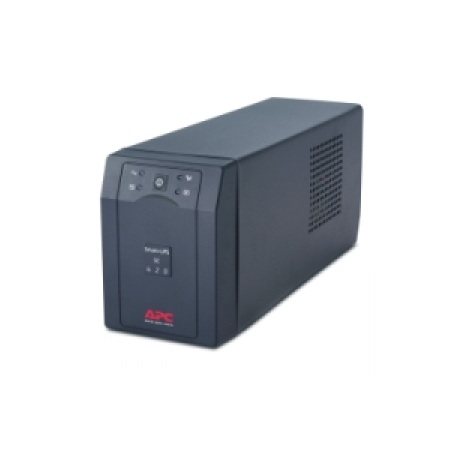

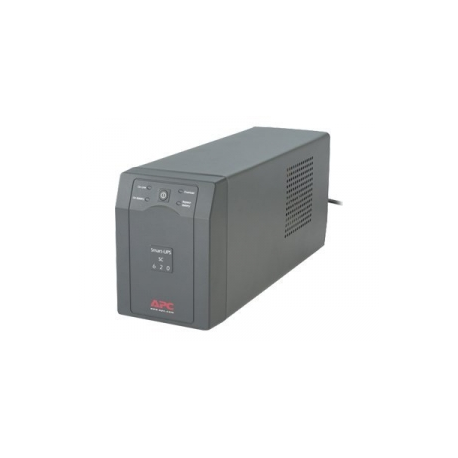

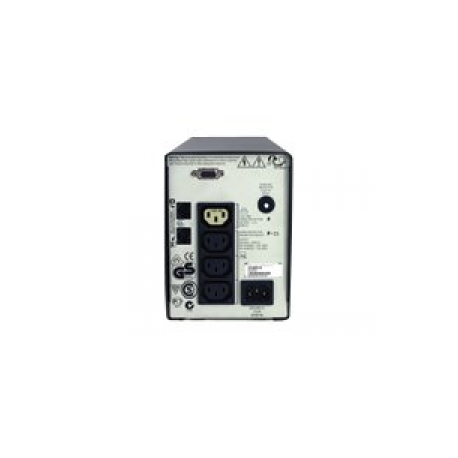

APC Smart-UPS SC 620VA - UPS

All offers are visible after login.

Manufacturer

•

APC

Reference

•

SC620I

Article

•

7116

Intrastat

•

84734080

Shipping weight

•

12.325 kg

Device Type

UPS - external

Battery Enclosure Type

Internal

Colour

Grey

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 160 - 286 V

Input Voltage Range (Adjustable)

AC 151 - 302 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)

Output Voltage

AC 230 V ± 5% - 50/60 Hz

Power Capacity

390 Watt / 620 VA

Dataline Surge Protection

Network/phone line - RJ-45/RJ-11

Output Waveform

Stepped approximation to a sinewave

Surge Suppression

Yes

Surge Energy Rating

320 Joules

Quantity

1

Technology

Lead Acid

Run Time (Up To)

5.5 min at full load

Remote Management Interface

RS-232

Interfaces

1 x RS-232 - 9 pin D-Sub (DB-9)

Cables Included

Serial cable

Features

Audible alarm, audible alarm, LED indicators

Compliant Standards

FCC Class B certified, CSA, NOM, UL 1449, UL 1778, FCC Part 15

Software Included

APC PowerChute Business Edition

Service & Support

Limited warranty - parts and labour - 2 years

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

45 dBA

Width

11.9 cm

Depth

36.8 cm

Height

16.8 cm

Weight

12 kg
