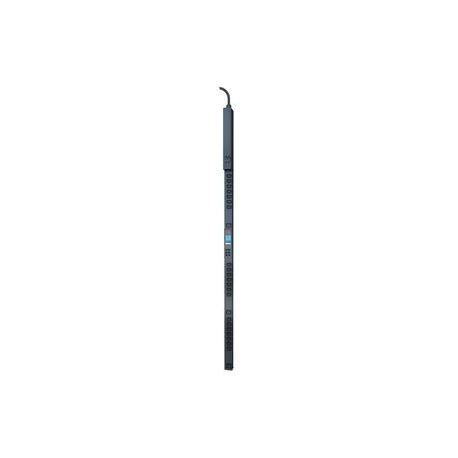

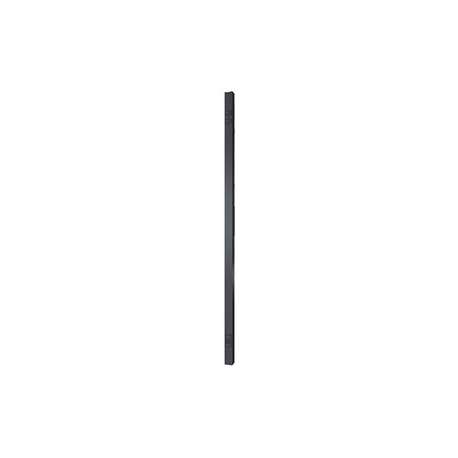

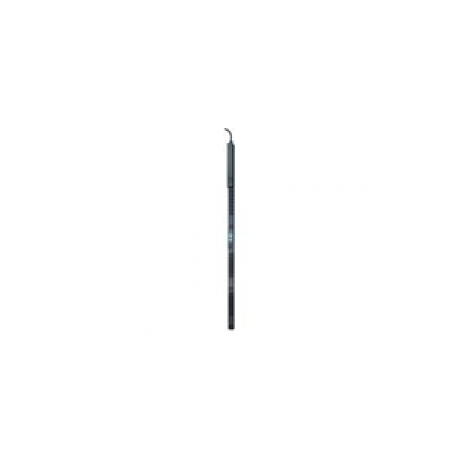

APC Metered Rack PDU ZeroU 2G - Power distribution unit (rack-mountable) - AC 200 / 208 / 230 V - Ethernet - input: IEC 60309 32A - output connectors: 24 - 0U - black - for P / N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW

images are for illustrative purposes only

Condition: New

Article: 1262252 Intrastat: 85044090 SKU: AP8453

Pricing and stock details are available to registered users only.

Integrates with StruxureWare data center expert
Local current monitoring display
Alarm thresholds
Network management capabilities
Flash upgradeable
Metering-by-outlet capability
Load indicator LED

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.

Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Colour	Black
Input Voltage	AC 200/208/230 V
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60309 32A
Power Output Connectors Details	21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19
Output Voltage	AC 230 V
Max Electric Current	32 A
Remote Management Interface	Ethernet
Remote Management Protocol	SNMP, Telnet
Interfaces	1 x management (Ethernet) - RJ-45
Cables Included	Power cable 3.05 m
Features	LCD display, firmware upgradable
Compliant Standards	EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, REACH
Service & Support	Limited warranty - 2 years
Min Operating Temperature	-5 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 95%
Width	5.6 cm
Depth	5.1 cm
Height	182.9 cm
Weight	8.21 kg
Shipping Width	16.3 cm
Shipping Depth	11.7 cm
Shipping Height	203.7 cm
Shipping Weight	10.48 kg
Designed For	P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT150
