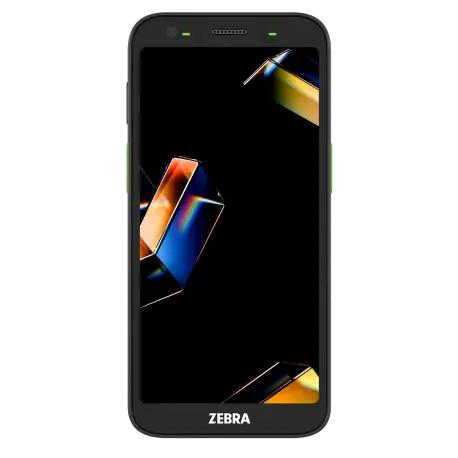

Zebra TC501 - Data collection terminal - rugged - Android - 256 GB UFS card - 6" colour AMOLED (2160 x 1080) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - Wi-Fi 7, Bluetooth 6.0, NFC

Manufacturer

•

ZEBRA

Reference

•

TC5010-041B2B0001-A6

Article

•

4488048

Intrastat

•

84713000

Manufacturer price

•

3008.69 €

Total quantity in stocks

•

Nearest delivery

•

16.07.2026

Portable data collection device, 2D, imager (SR560), screen size: 15.2 cm (6"), capacitive, multi touch, resolution: 2160x1080 pixels, RFID (reader), Camera (50 MP), front camera (8 MP), hot swappable, vibration, brightness 1500cd, connection: USB-C, Bluetooth (BLE), Wi-Fi 7 (802.11be), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 12 GB, Flash: 256 GB, Android, incl.: battery, 5000 mAh, removable battery, protection class: IP65, IP68

12 GB

Read more on this model

Product Type

Data collection terminal - rugged

Operating System

Android

Type

Touch-screen

Resolution

2160 x 1080

Touchscreen

Multi-Touch

Image Brightness

1500 cd/m²

Features

Voice over Internet Protocol (VoIP), Voice over Long-Term Evolution (VoLTE), fullband (FB) audio, super-wideband (SWB) audio, 2x2 MU-MIMO technology, SR560 scan engine, MIL-STD-810H tested

Processor

Qualcomm Dragonwing Q-6690

Processor Clock Speed

2.9 GHz

Number of Cores

8-core

Storage

256 GB UFS card

RAM

12 GB - LPDDR5 SDRAM

Supported Flash Memory Cards

microSD

Max Supported Capacity

2 TB

Wireless Connectivity

802.11a/b/g/n/ac/ax/be, Bluetooth 6.0, NFC

Security Protocols & Features

WPA3-Enterprise, GCMP256, EAP-TLS, AES-CCMP, EAP-TTLS, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-PWD, WPA3-Personal, WPA3-SAE, TKIP, WPA, WPA2-Personal, WEP, EAP-SIM, EAP-AKA

Sensor Resolution

8 Megapixel

Focus Adjustment

Fixed focus

Special Effects

HDR

Light Source

LED flash

Audio

2 microphones, two speakers

Barcode Reader

Yes

Scan Element Type

2D imager

Barcodes

1D, 2D

Max Working Distance

2 m

Frequency

865-868 MHz / 902-928 MHz

RFID Specification

EPC Class 1 Generation 2, EPC Class 1 Generation 2 V2

Interfaces

USB 2.0 USB-C 3.1

Technology

PowerPrecision+ - Lithium Ion

Capacity

5000 mAh

Sensors

3-axis gyro sensor, 3-axis accelerometer, magnetometer, proximity sensor, light sensor

Vibrating Alert

Yes

Compliant Standards

IP68, IP65, RoHS, Directive 2011/65/EU, REACH SVHC 1097/2006, Directive 2015/863

Width

16.315 cm

Depth

1.55 cm

Height

7.79 cm

Weight

273 g

Service & Support

Limited warranty - 1 year

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C
