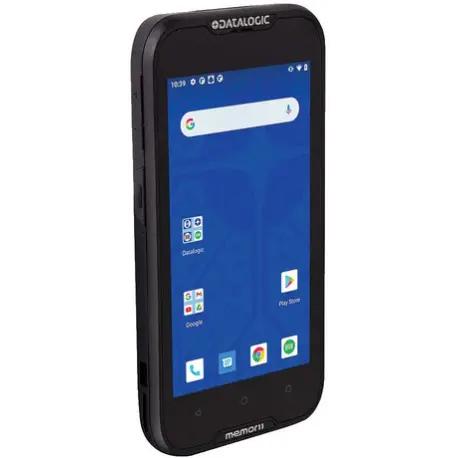

Datalogic Joya Touch 22 - Data collection terminal - rugged - Android 11 - 32 GB eMMC - 5" IPS (720 x 1280) - rear camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi, Wi-Fi 5, NFC, Bluetooth - black
Datalogic Joya Touch 22 - Data collection terminal - rugged - Android 11 - 32 GB eMMC - 5" IPS (720 x 1280) - rear camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi, Wi-Fi 5, NFC, Bluetooth - black
Manufacturer
•DATALOGIC
Reference
•944900004
Article
•3140629
Intrastat
•84713000
Shipping weight
•0.285 kg
Product Type
Data collection terminal - rugged
Operating System
Android 11
Type
5" IPS - LED backlight
Resolution
720 x 1280
Touchscreen
Multi-Touch
Features
5-point multi-touch, AGC Dragontrail Glass, Dark Stabilizer
Processor Clock Speed
2 GHz
Number of Cores
8-core
Storage
32 GB eMMC
RAM
4 GB
Supported Flash Memory Cards
microSD, microSDHC
Cellular Protocols
GSM, WCDMA, FDD LTE
Wireless Connectivity
Wi-Fi, 802.11a/b/g/n/ac, NFC, Bluetooth 5.0
Security Protocols & Features
WPA3
Bluetooth Profiles
Low Energy
Sensor Resolution
13 Megapixel
Focus Adjustment
Automatic
Camera Modes
Low Light mode
Light Source
LED flash
Receiver
GPS/GLONASS/BeiDou
Type
Touch-screen
Barcode Reader
Yes
Scan Element Type
2D imager
Barcodes
GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, Intelligent Mail Barcode, DotCode, Han Xin, Digimarc Barcode, OCR
Max Working Distance
90 cm
Minimum Bar Width
3 mil
Preloaded Software
Wavelink Avalanche, SOTI MobiControl, AirWatch, Google Mobile Services, Xamarin SDK, Java SDK, Ivanti Velocity, 42 Gears SureLock, Scan2Deploy Studio, Datalogic SoftSpot
Expansion Slots
1 x microSD
Interfaces
1 x USB-C
USB Host
Yes
Technology
Lithium Ion
Capacity
4100 mAh
Wireless Charging
Yes
Wireless Charging Standards
Fast Wireless Charging
Colour
Black
Sensors
Ambient light sensor, proximity sensor, magnetometer, vibration sensor, 3-axis accelerometer, gyroscope
Features
Advance Battery Management (ABM), Green Spot technology, drop-resistant, chemical-resistant, oil-resistant, scan key, IP54 protection, IP65 protection, 3 programmable buttons, SafeSwap technology, 1.5 m drop to concrete resistant, volume key
Included Accessories
Hand strap
Cables Included
USB cable
Compliant Standards
Bluetooth Class 2, MIL-STD 810G, IEC 60068-2-32, ISO 15693, IP65, FeliCa, ISO/IEC 14443-4 Type A/B, GMS, EU RoHS, MIFARE
Localisation
North America
Width
7.8 cm
Depth
1.87 cm
Height
15.5 cm
Weight
285 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
