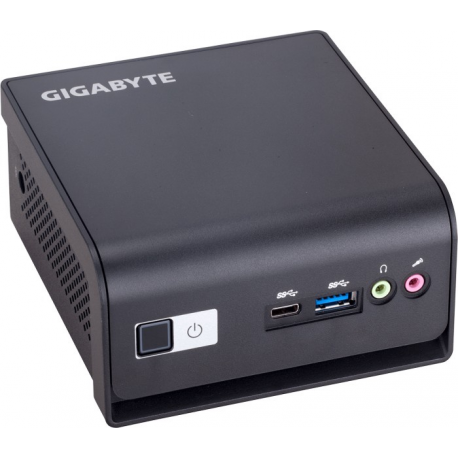

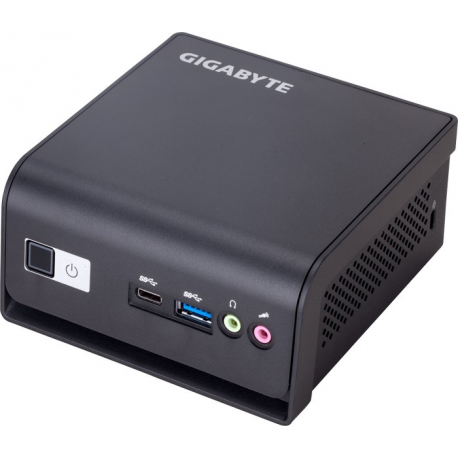

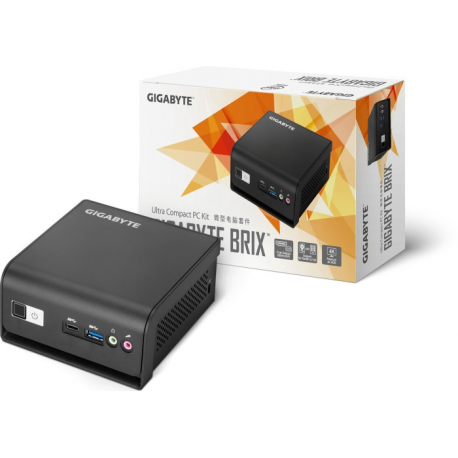

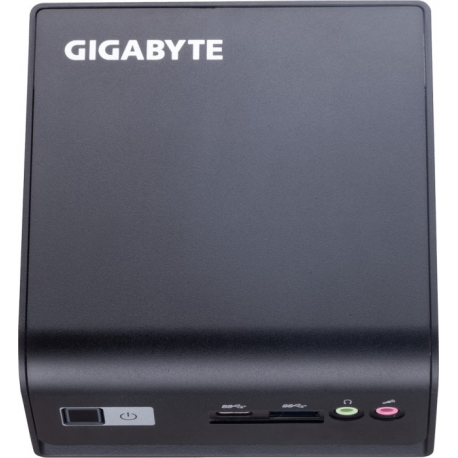

Gigabyte BRIX GB-BMCE-5105 (rev. 1.0) - Barebone - ultra compact mini PC - 1 x Celeron N5105 / 2 GHz - RAM 0 GB - UHD Graphics 605 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 4.2
images are for illustrative purposes only
New
Article: 1864567 Intrastat: 84718000 SKU: GB-BMCE-5105
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Ultra compact mini PC |
| CPU | Intel Celeron N5105 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.9 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Installed Size | 0 GB / 16 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 1 (Total) / 1 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 605 |
| Video Interfaces | HDMI, DisplayPort |
| Sound Output Mode | Stereo |
| Ethernet Controller | Realtek RTL8111HS |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) 1 (total) / 1 (free) x M.2 Card - 2280 |

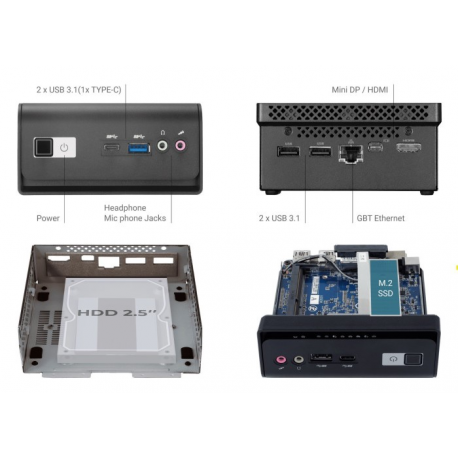

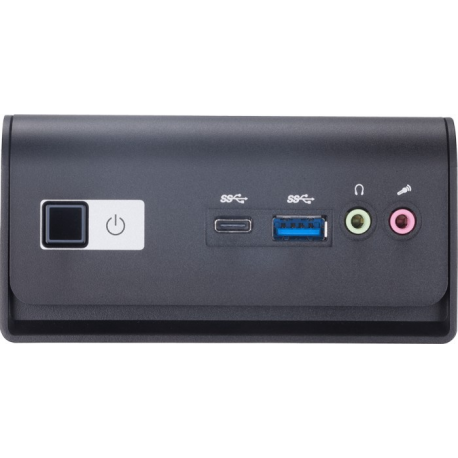

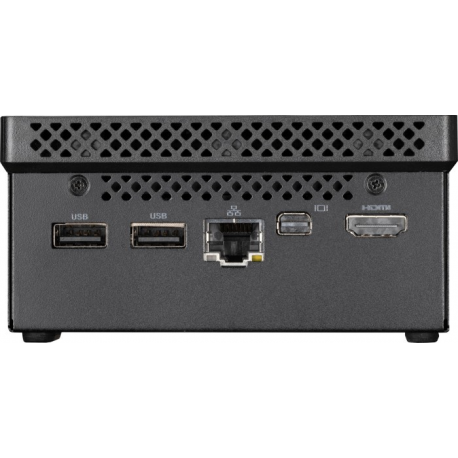

| Interfaces | 3 x USB 3.0 (1 front, 2 rear) 1 x HDMI 1 x Mini DisplayPort 1 x LAN (Gigabit Ethernet) 1 x headphones (1 in front) 1 x microphone (1 in front) 1 x USB-C 3.0 (1 in front) |
| Included Accessories | VESA wallmount adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| Width | 11.26 cm |
| Depth | 11.94 cm |
| Height | 4.68 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
