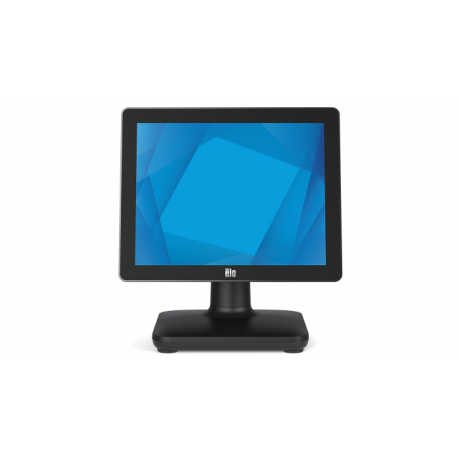

EloPOS System i5 - With Wall Mount & I / O Hub - all-in-one - 1 x Core i5 8500T / 2.1 GHz - vPro - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - Win 10 IoT Enterprise LTSC 64-bit - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
EloPOS System i5 - With Wall Mount & I / O Hub - all-in-one - 1 x Core i5 8500T / 2.1 GHz - vPro - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - Win 10 IoT Enterprise LTSC 64-bit - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
Manufacturer
•ELO TOUCHSYSTEMS
Reference
•E484896
Article
•1764879
Intrastat
•84714900
Shipping weight
•6.8 kg
Manufacturer price
•1968.00 €
Total quantity in stocks
•24
Nearest delivery
•23.03.2026
POS System, Touchscreen, Projected Capacitive, 43.2 cm (17"), resolution: 1280x1024 pixels, Intel Core i5, 3.5 GHz, RAM: 8 GB, SSD: 128 GB, USB (4x), powered-USB (3x), RS232 (2x), Bluetooth, Ethernet, Wi-Fi (802.11ac), audio, VESA mount (75x75 mm), 5ms, brightness: 212cd, viewing angle: 170/160°(H/V), contrast: 1000:1, Win 10 IoT Enterprise, incl.: cable (RS232), power supply unit, power cable, QSG, colour: black
Platform Technology
Intel vPro Platform
Type
Point of sale terminal
Product Form Factor
All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
CPU
Intel Core i5 (8th Gen) 8500T
Clock Speed
2.1 GHz
Max Turbo Speed
3.5 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
CPU Socket
LGA1151 Socket
Chipset Type
Intel Q370
Installed Size
9 MB
Cache Per Processor
9 MB
Installed Size
8 GB / 32 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 1 (empty)
Features
Unbuffered
Configuration Features
1 x 8 GB
Type
SSD - M.2
Capacity
1 x 128 GB
Interface Type
SATA 6Gb/s
SSD Endurance
80 TB
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Type
No optical drive
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
17"
Native Resolution
1280 x 1024 (SXGA)
Widescreen Display
No
Image Aspect Ratio
5:4
Horizontal Viewing Angle
170
Vertical Viewing Angle
160
Response Time
5 ms
Image Brightness
212.5 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
Anti-glare, TouchPro Pro Projected Capacitive (PCAP) technology
Graphics Processor
Intel UHD Graphics 630
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Features
Intel Active Management Technology (AMT) 11
Interfaces
3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging)
Included Accessories
Cable cover locking screw
Cables Included
RJ-45 to DB-9 cable ¦ Power cable (2 pcs.)
VESA Mounting Interface
75 mm
Compliant Standards
UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, CE/EMC, Mexico NOM
Device Type
Power adapter
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
180 Watt
Power Consumption Operational
76 Watt
OS Provided
Windows 10 IoT Enterprise LTSC 64-bit Edition
Service & Support
Limited warranty - 3 years
Dimensions & Weight Details
39.35 cm - 8.33 cm - 32.59 cm - 4.8 kg - without stand
Width
39.35 cm
Depth
8.33 cm
Height
32.59 cm
Weight
4.8 kg
Shipping Width
47.6 cm
Shipping Depth
19.7 cm
Shipping Height
40 cm
Shipping Weight
6.8 kg
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
