Zebra CS60 - Barcode scanner - companion - 2D imager - decoded - Bluetooth 5.0 LE

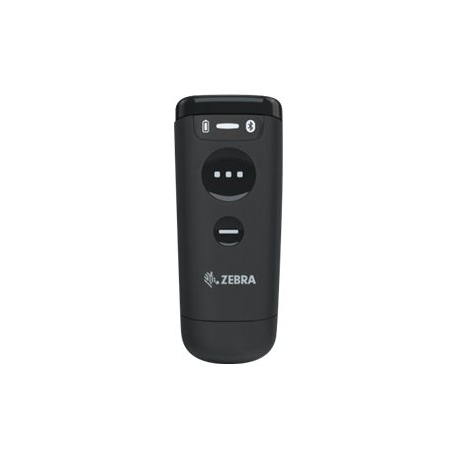

images are for illustrative purposes only
New
Article: 1749989 Intrastat: 84716070 SKU: CS6080-SR40004VMWW
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - companion |
| Colour | Midnight black |
| Interface Type | Bluetooth 5.0 LE |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - warm white LED |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 66 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, UPC/EAN supplementals, DotCode, Han Xin, Korean 3 of 5, Base 32, US currency serial number, Composite Codes, SecurPharm, Dotted DataMatrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Waterproof, dustproof, PRZM Intelligent Imaging technology, standard range scanning, white LEDs illumination, removable battery, Human Interface Device Profile (HID), Serial Port Profile (SPP), drop protection, 15 kV ESD protection (air discharge), 8 kV ESD protection (indirect discharge), 8 kV ESD protection (contact discharge), capacitive trigger, Qi inductive charging |
| Wireless Connectivity | NFC, Bluetooth 5.0 LE |
| Included Accessories | Lanyard |
| Compliant Standards | Bluetooth Class 1, EN 61000-4-2, REACH, IP65, MFI, EN 50581:2012, SVHC Free: 1907/2006/EC, IEC 62471:2006, EN 62471:2008, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, EN 62368-1:2014/AC:2015, EN 61000-3-2:2014 Class A, EN 55032:2015+AC:2016 Class B, EN 55035:2017, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, IEC 62368-1 Second Edition |
| Electric Current Required | 90 mA (standby), 400 mA (typical) |
| Battery | Lithium polymer |
| Width | 4.6 cm |
| Depth | 10.9 cm |
| Height | 2.3 cm |
| Weight | 83 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
