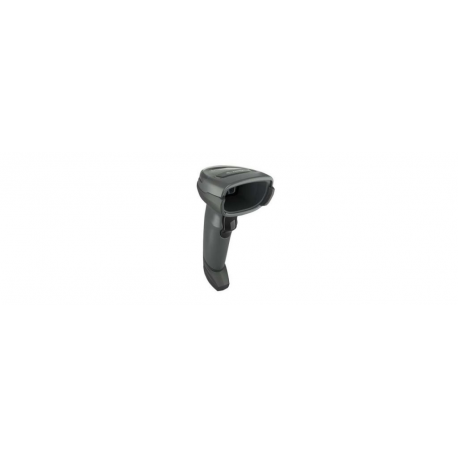

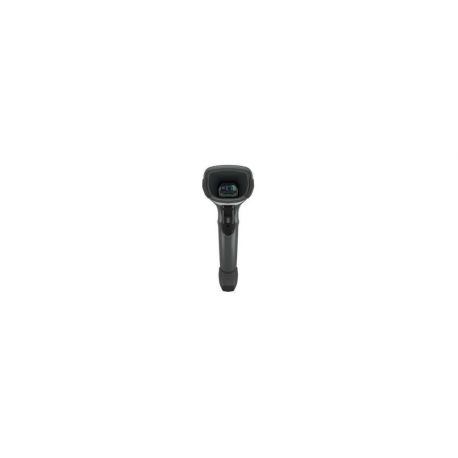

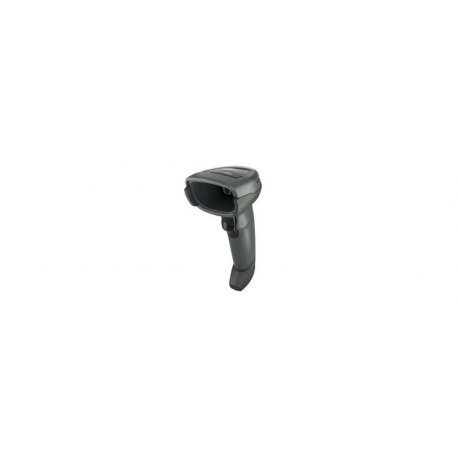

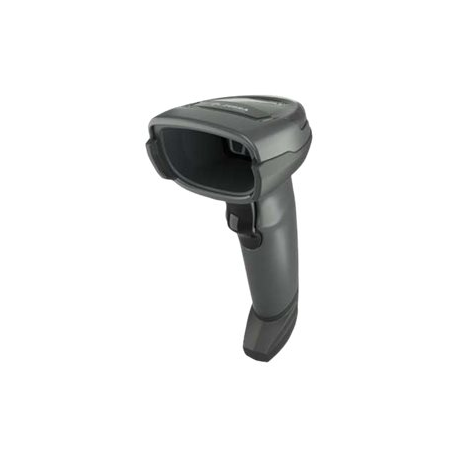

Zebra DS4608-HD - Barcode scanner - handheld - 2D imager - decoded - RS-232, USB
Zebra DS4608-HD - Barcode scanner - handheld - 2D imager - decoded - RS-232, USB
Manufacturer
•ZEBRA
Reference
•DS4608-HD7K0100AZW
Article
•1689608
Intrastat
•84716070
Shipping weight
•0.1619 kg
Manufacturer price
•354.24 €
Type
Barcode scanner - handheld
Interface Type
RS-232, USB
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS)
