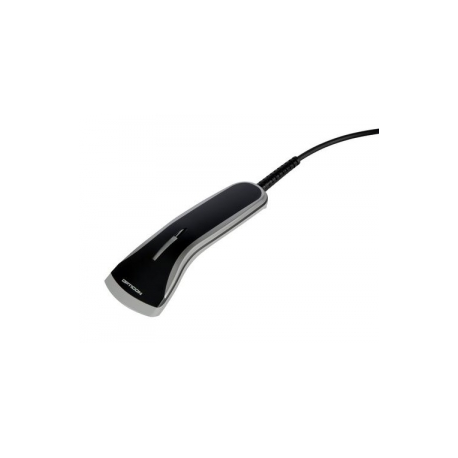

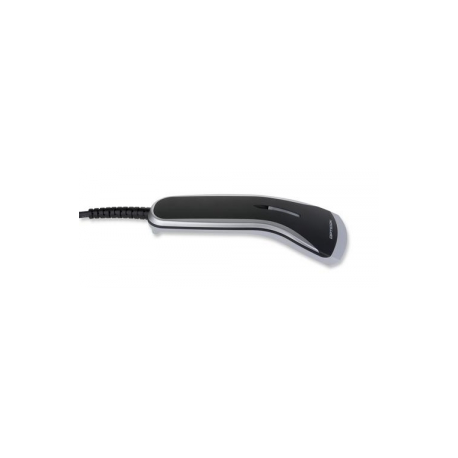

Opticon OPR-2001 - Barcode scanner - handheld - 100 scan / sec - decoded - RS-232
Opticon OPR-2001 - Barcode scanner - handheld - 100 scan / sec - decoded - RS-232
Manufacturer
•OPTICON SENSORS
Reference
•11646
Article
•462421
Intrastat
•84716070
Shipping weight
•0.06 kg
Total quantity in stocks
•2
Nearest delivery
•29.05.2026
Type
Barcode scanner - handheld
Colour
Black
Interface Type
RS-232
Minimum Bar Width
5 mil
Scan Field Width
2 cm - 50 cm
Scan Element Type
Visible laser diode
Light Source Wave Length
650 nm
Scan Speed
100 scan / sec
Skew (Degrees)
50
Pitch (Degrees)
35
Print Contrast Signal (PCS)
45%
Decode Capability
EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, NW-7, IATA, ISBN, GS1 DataBar, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, China Post, Korea Post, Trioptic Code, EAN-UCC Composite, ISSN, UK-Plessey, ISMN, S-Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, Reduced Space Symbology (RSS)
Interfaces
1 x RS-232 - DB-9

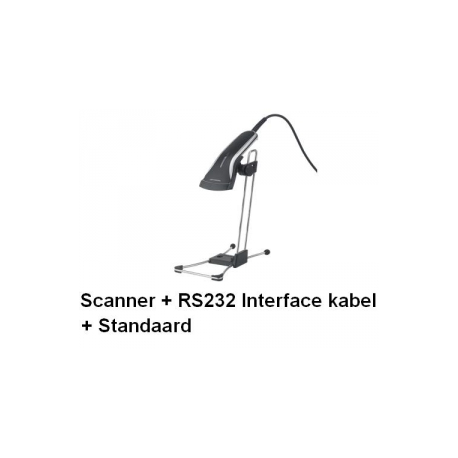

Included Accessories
Stand
Cables Included
1 x serial cable
Compliant Standards
VCCI, FCC, RoHS, IEC 60825-1, FDA, JIS C 6802 Class 2
Width
5.6 cm
Depth
3.1 cm
Height
15.1 cm
Weight
60 g
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
20 - 85% (non-condensing)
Drop Specification
1.5 m
