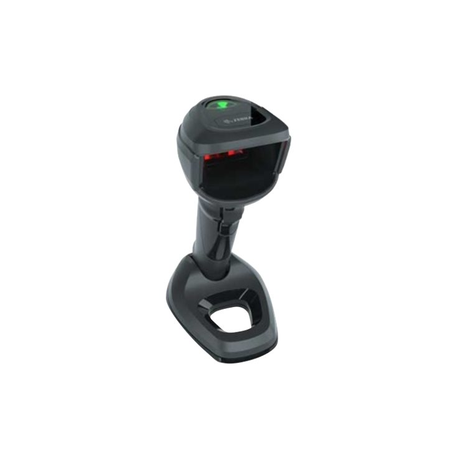

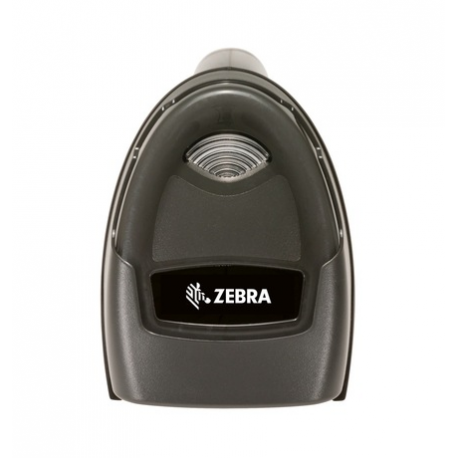

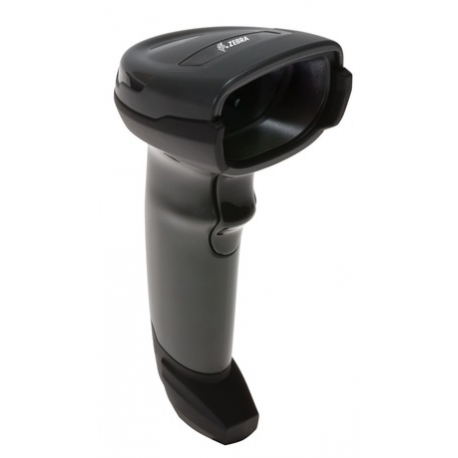

Zebra DS9908-SR - Barcode scanner - handheld - 2D imager - decoded - USB
images are for illustrative purposes only
New
Article: 1558335 Intrastat: 84716070 SKU: DS9908-SR4U2100AZW Barcode: DS9908-SR4U21
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Midnight black |
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 45.7 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, China Han Xin Code, Composite, Korean 3 of 5, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, deactivation of EAS tag, Digimarc Barcode Technology |
| Interfaces | 1 x USB - Type A |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 62471-1:2006, EN 55032:2015+AC:2016 Class B, EN 55035:2017 |
| Electric Current Required | 70 mA (standby), 321 mA (typical) |
| Width | 9.4 cm |
| Depth | 13.2 cm |
| Height | 20.3 cm |
| Weight | 330 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
