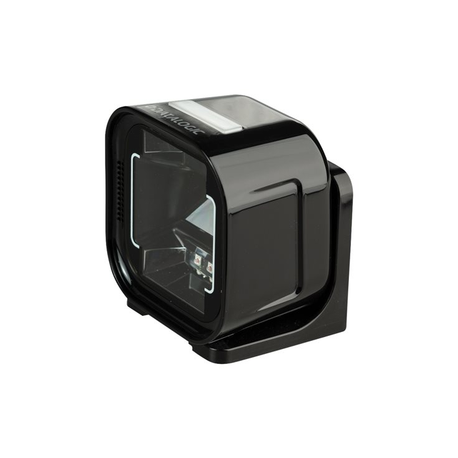

Datalogic Magellan 1500i - OEM Configuration - barcode scanner - stationary - 2D imager - 1500 mm / sec - decoded - USB - OEM
Datalogic Magellan 1500i - OEM Configuration - barcode scanner - stationary - 2D imager - 1500 mm / sec - decoded - USB - OEM
Manufacturer
•DATALOGIC
Reference
•MG1503-30200-0200
Article
•1783275
Intrastat
•84716070
Shipping weight
•0.24 kg
Total quantity in stocks
•20
Nearest delivery
•22.07.2026
2DUSB
Type
Barcode scanner - stationary - stationary
Colour
Black
Interface Type
USB
Minimum Bar Width
5 mil
Scan Field Width
30 cm
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Scan Mode
Fixed projection
Scan Speed
1500 mm / sec
Max Working Distance
25 cm
Skew (Degrees)
75
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, RM4SCC, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, Portuguese Post
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS), Green Spot technology, 25 kV ESD protection (air discharge)
Interfaces
1 x USB
Cables Included
1 x USB cable - 2 m
Pricing Type
OEM
Compliant Standards
RoHS, JavaPOS, OPOS, IEC 60825-1, IP52
Electric Current Required
300 mA (standby), 500 mA (operating)
Width
6 cm
Depth
7.5 cm
Height
15 cm
Weight
240 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
