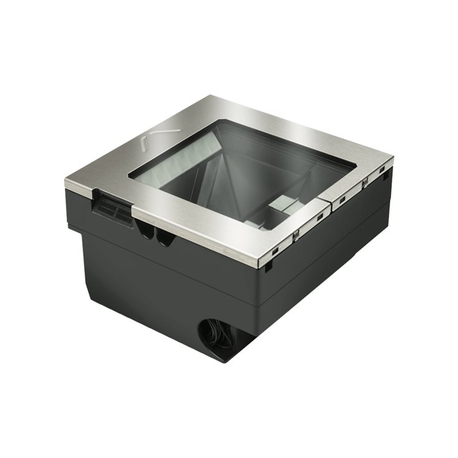

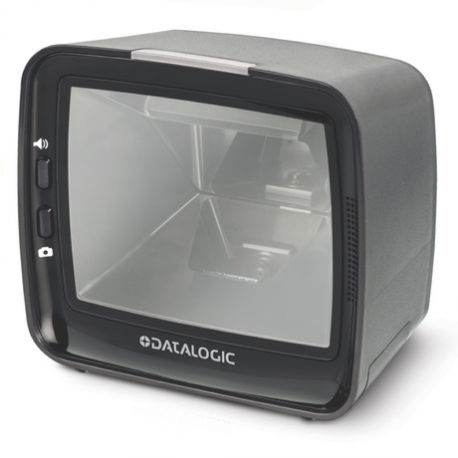

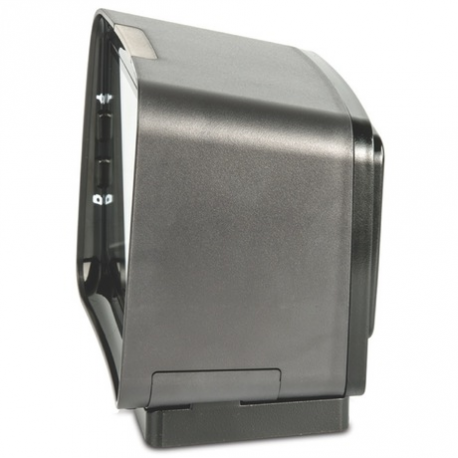

Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded

  • Magellan 3510HSi, No Platter, Default Configuration, 1D/2D Scanning, No Accessories
  • Magellan 3510HSi, No Platter, Default Configuration, 1D/2D Scanning, No Accessories
  • Magellan 3510HSi, No Platter, Default Configuration, 1D/2D Scanning, No Accessories
images are for illustrative purposes only

New

Article: 1783626 Intrastat: 84719000 SKU: M3510-010200
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - integrated - stationary
Minimum Bar Width5 mil
Scan Element Type2D imager - LED
Sensor Resolution1280 x 800
Scan ModeFixed projection
Max Working Distance10.2 cm
Skew (Degrees)75
Pitch (Degrees)65
Print Contrast Signal (PCS)25%
Decode CapabilityGS1 DataBar, QR code, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL DecodingDecoded
Connectivity TechnologyWired
OK NotificationBeeper, LED indicator
FeaturesCheckpoint Electronic Article Surveillance (EAS), Micro SD card slot, Digimarc Barcode Technology, USB powered, 25 kV ESD protection (air discharge)
Interfaces1 x USB - Type A
Compliant StandardsIP52, China RoHS, EN 62471:2008, IEC 62471, EU RoHS
VoltageDC 5 - 12 V
Width15.2 cm
Depth15.2 cm
Height8.7 cm
Weight980 g
Service & SupportLimited warranty - 3 years
Min Operating Temperature10 °C
Max Operating Temperature40 °C
Humidity Range Operating5 - 95% (non-condensing)
