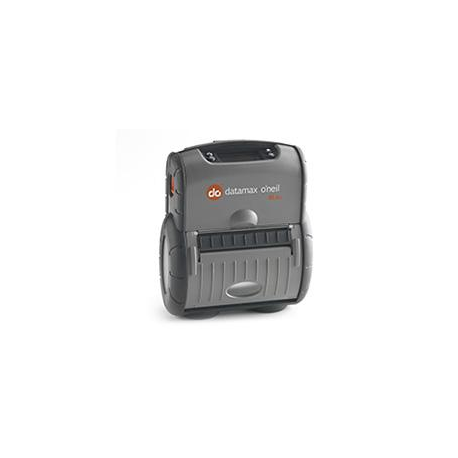

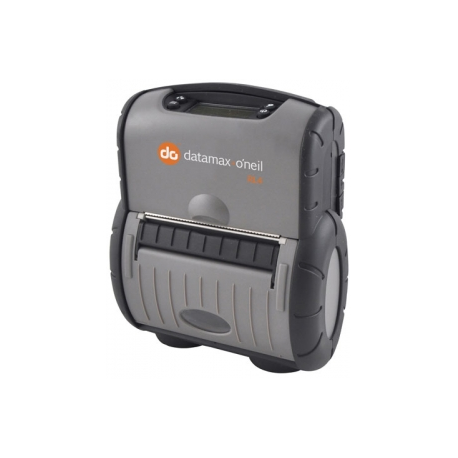

Datamax-O'Neil RL4e - Label printer - direct thermal - Roll A6 (10.5 cm) - 203 dpi - up to 102 mm / sec - USB 2.0, serial, Wi-Fi(n), Bluetooth 4.0
images are for illustrative purposes only
New
Article: 1299547 Intrastat: 84433210 SKU: RL4-DP-50000310
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Print Speed | Up to 102 mm/sec - max speed |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, serial, Wi-Fi(n), Bluetooth 4.0 |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, Intermec Printer Language (IPL), EZPL, Extensible Mark-up Language (XML), Comtec Printer Control Language (CPCL), DPL |
| Fonts | CG Times, CG Triumvirate, CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Display Resolution | 128 x 64 |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, FIM, TLC39, Plessey |
| RAM Installed (Max) | 64 MB |
| Flash Memory | 128 MB |
| Media Type | Labels, receipt paper, linerless labels |
| Max Media Size | Roll A6 (10.5 cm) |
| Min Media Size (Custom) | 51 mm |
| Max Media Size (Custom) | 105 mm |
| Media Sizes | Roll (5.1 - 10.5 cm) |
| Max Printing Width | 105 mm |
| Media Thickness Range | 0.0508 mm - 0.165 mm |
| Roll Maximum Outer Diameter | 67 mm |
| Roll Core Diameter | 19 mm |
| Media Feeders | 1 x manual - 1 roll - Roll A6 (10.5 cm) |
| Networking | Print server |
| Connections | 1 x RS-232 ¦ 1 x USB 2.0 |
| Included Accessories | Belt clip |
| Compliant Standards | UL, cUL, EN55024, EN55022 Class B, FCC Part 15 B, CCC, IEC 60950-1, SRRC, EAC |
| Power Device | Battery charger - external |
| Type | Lithium Ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 2200 mAh |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 16.6 cm |
| Depth | 8.1 cm |
| Height | 20 cm |
| Weight | 980 g |
