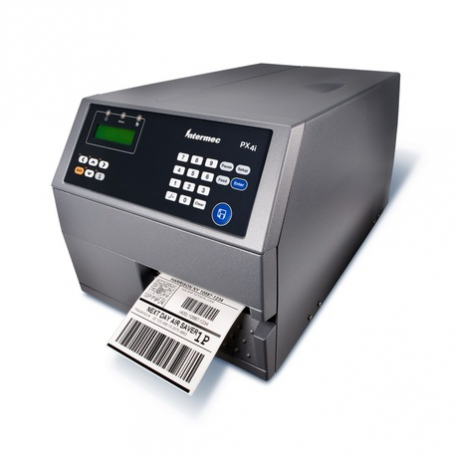

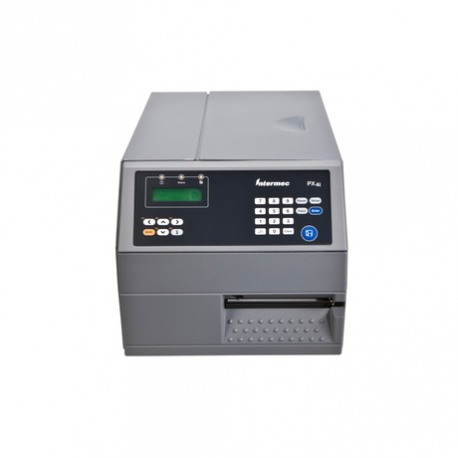

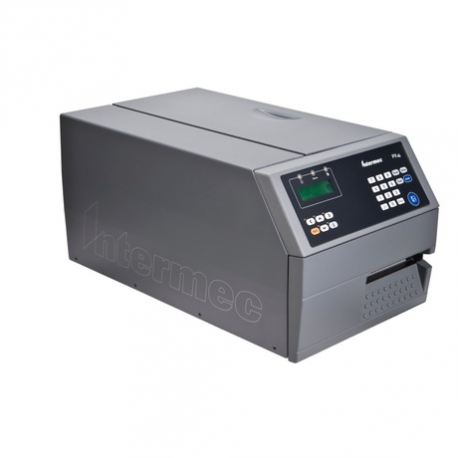

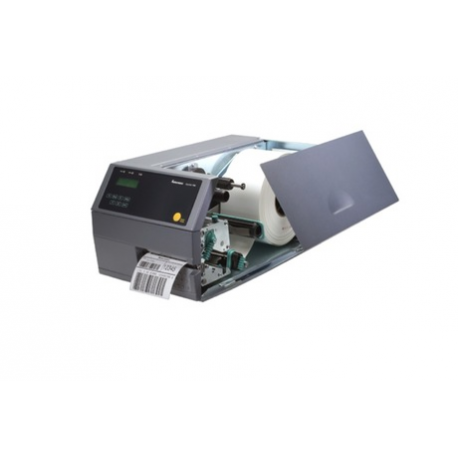

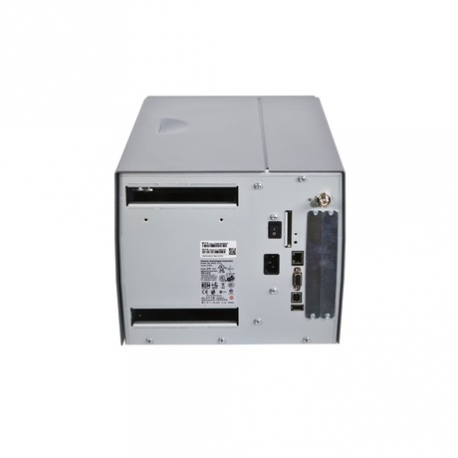

Intermec PX Series PX4i - Label printer - direct thermal / thermal transfer - Roll (12 cm) - 300 dpi - up to 300 mm / sec - USB 2.0, LAN, serial, USB host - peeler with liner rewind
images are for illustrative purposes only
New
Article: 1678418 Intrastat: 84433210 SKU: PX4E010000005130
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Print Speed | Up to 300 mm/sec - max speed |
| Built-in Devices | Status LCD, peeler with liner rewind |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML) |
| Features | Realtime clock, Black Mark sensor, gap sensor, peeler with liner rewind, notch sensor |
| Barcodes | UCC/EAN-128, ISBT 128, HIBCC, LOGMARS, Postnet, AIAG |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Type | Card reader |
| Supported Flash Memory Cards | CompactFlash Card |
| Media Type | Labels, tickets, continuous labels, tags, fanfold labels |
| Max Media Size | Roll (12 cm) |
| Min Media Size (Custom) | 25.4 mm |
| Max Media Size (Custom) | 120 mm |
| Media Sizes | Roll (2.54 - 12 cm) |
| Max Printing Width | 112 mm |
| Max Printing Length | 2775 mm |
| Media Thickness Range | 0.06 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 213 mm |
| Roll Core Diameter | 76 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (12 cm) |
| Networking | Print server |
| Remote Management Protocol | SNMP 3, HTTP, ICMP, IPv6 |
| Expansion Slots | 2 x expansion slot |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A |
| Features | Rugged |
| Compliant Standards | FCC Class A certified, UL, C-Tick, cUL, EN 55022 Class A |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 400 Watt |
| Power Consumption Stand by | 20 Watt |
| Software Included | Drivers & Utilities, Intermec InterDriver, Intermec PrintSet |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 27.5 cm |
| Depth | 48.2 cm |
| Height | 23.8 cm |
| Weight | 12.85 kg |
