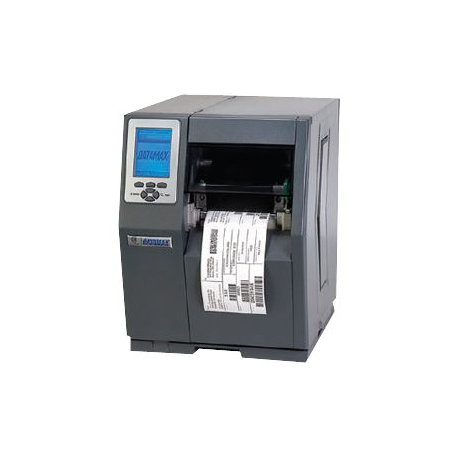

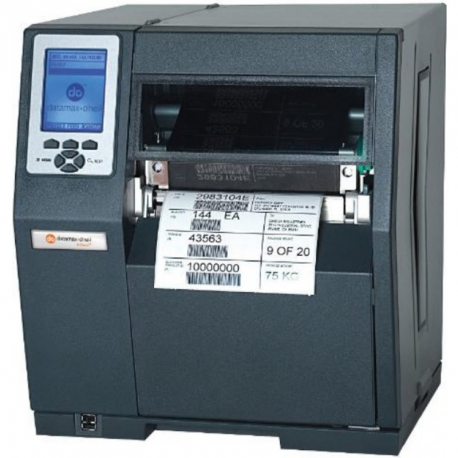

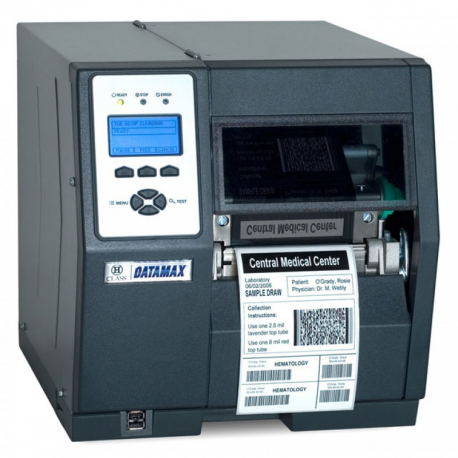

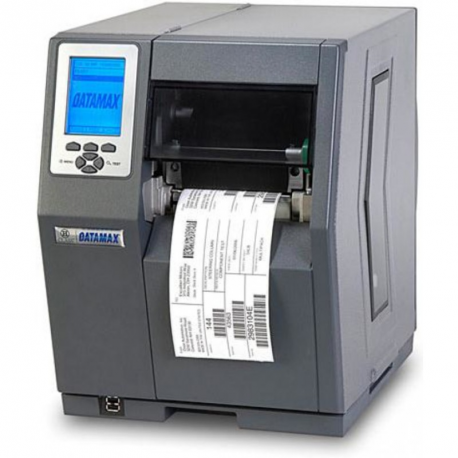

Datamax H-Class H-4310 - Label printer - direct thermal / thermal transfer - Roll (11.81 cm) - 300 dpi - up to 254 mm / sec - parallel, USB 2.0, LAN, serial - rewinder, peeler
images are for illustrative purposes only
New
Article: 1536368 Intrastat: 84433210 SKU: C43-00-43900P07
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | Europe |
| Print Speed | Up to 254 mm/sec - max speed - 300 dpi |
| Built-in Devices | Status LCD, peeler, Applicator Interface Port |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, LAN, serial |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | DPL |
| Fonts | CG Times, CG Triumvirate, CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Vertical, Mirror, rotated text |
| Features | Rewinder, realtime clock, peeler |
| Display Resolution | 128 x 64 |
| Fonts Included | 3 x scalable ¦ 9 x bitmapped |
| Barcodes | Code 93, Industrial 2 of 5, UCC/EAN-128, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, PLANET, TLC39, Plessey, Standard 2 of 5, USD-8 |
| Printer Features | IntelliSEAQ |
| Processor | 200 MHz |
| RAM Installed (Max) | 16 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 8 MB |
| Media Type | Labels, continuous forms, fanfold paper, tag stock, tickets, perforated tags, die cut labels |
| Max Media Size | Roll (11.81 cm) |
| Min Media Size (Custom) | 25.4 mm |
| Max Media Size (Custom) | 118.1 mm |
| Media Sizes | Roll (2.54 - 11.81 cm) |
| Max Printing Width | 105.7 mm |
| Max Printing Length | 2540 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 203.2 mm |
| Roll Core Diameter | 76.2 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.81 cm) |
| Networking | Print server |
| Connections | 1 x parallel - 36 PIN Centronics ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type B |
| Included Accessories | Peeler, rewind, label present sensor, 3" media hub |
| Features | Clear window, rugged, firmware upgradable |
| Compliant Standards | FCC Class A certified, CCC, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, KCC, cULus, ISO 9001:2008, IEC 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, Directive 2002/95/EC, EAC, EMC 2004/108/EC, LVD 2006/95/EC, EN 55024:1998+A1:2001+A2:2003, EN55022:2006 + A1:2007 Class B |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows NT, Microsoft Windows XP, Microsoft Windows Vista |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - parts and labour - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 38 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Width | 32.1 cm |
| Depth | 48 cm |
| Height | 33 cm |
| Weight | 18.2 kg |
