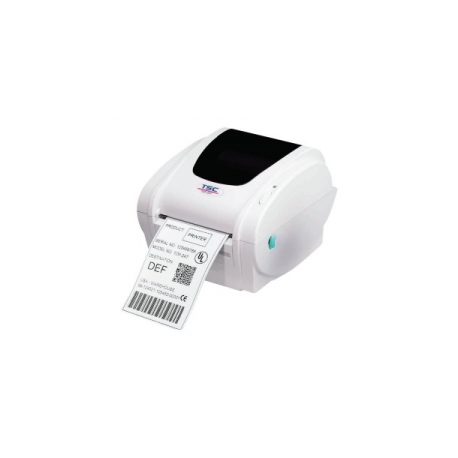

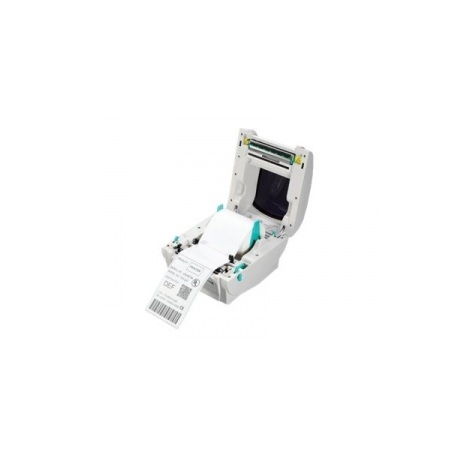

TSC TDP-247 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 178 mm / sec - parallel, USB 2.0, serial
images are for illustrative purposes only
New
Article: 1261144 Intrastat: 84433210 SKU: 99-126A010-00LF
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Print Speed | Up to 178 mm/sec - 203 dpi - Roll (11.2 cm) |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, serial |
| Max Resolution (B&W) | 203 dpi |
| Fonts Included | 8 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Code 128B, Code 128C, EAN-3, Code 128A, EAN-18 |
| Processor | 200 MHz |
| RAM Installed (Max) | 8 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 4 MB |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Media Type | Labels, continuous forms, fanfold paper |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 20 mm |
| Max Media Size (Custom) | 112 mm |
| Media Sizes | Roll (11.2 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 2286 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x parallel - 36 PIN Centronics ¦ 1 x USB 2.0 - 4 pin USB Type B |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Class B certified, UL, TUV, cUL, C-Tick Class B, CCC, RoHS, WEEE |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Width | 20 cm |
| Depth | 24 cm |
| Height | 16.4 cm |
| Weight | 1.9 kg |
