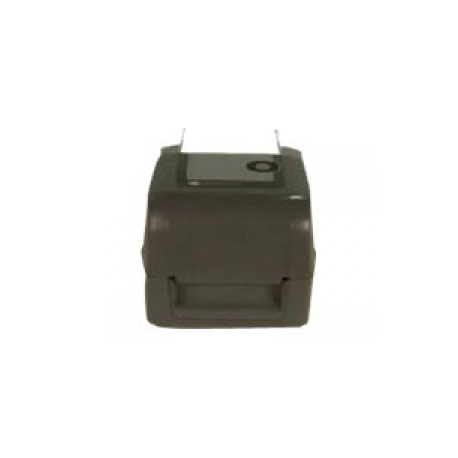

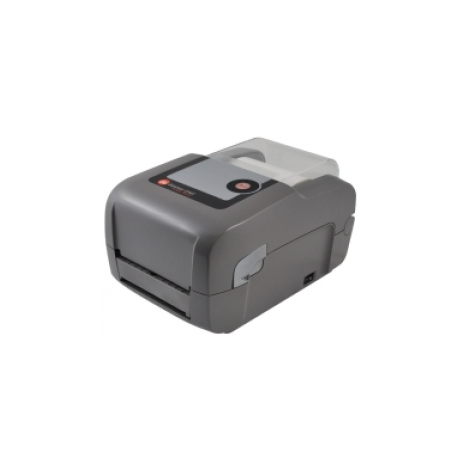

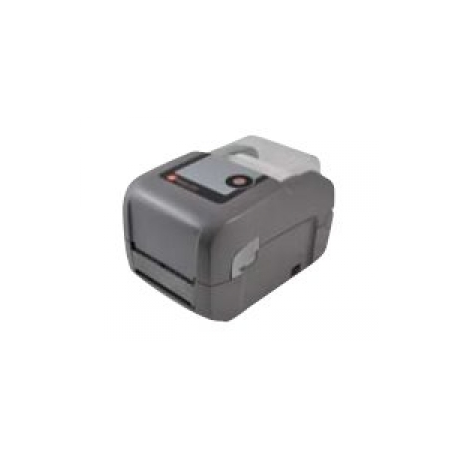

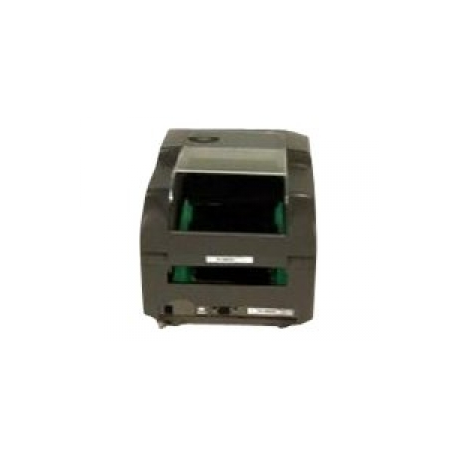

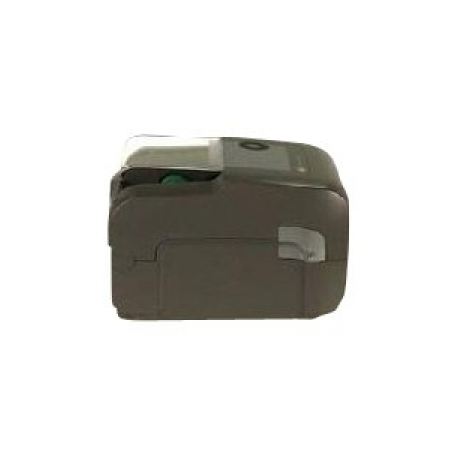

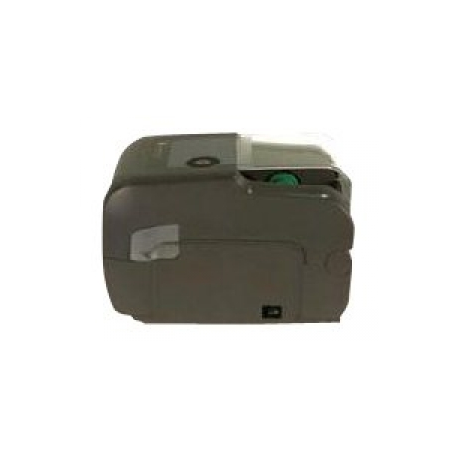

Datamax E-Class Mark III Advanced E-4205A - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 203 dpi - up to 127 mm / sec - parallel, USB 2.0, LAN, serial - warm grey
images are for illustrative purposes only
New
Article: 1055033 Intrastat: 84433210 SKU: EA2-00-1E005A00
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Enclosure Colour | Warm grey |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 127 mm/sec - max speed - 203 dpi |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, EPL, DPL |
| Fonts | CG Triumvirate, OCR-A, OCR-B |
| Styles & Effects | Mirror, rotated text |
| Features | Label sensor |
| Fonts Included | 1 x bitmapped ¦ 1 x barcode ¦ Intellifonts ¦ 1 x TrueType |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey |
| Printer Features | Adjustable Media Sensor (AMS), auto-detect printer programming language |
| RAM Installed (Max) | 16 MB |
| Flash Memory | 64 MB |
| Media Type | Continuous forms, perforated labels, fanfold paper |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 19 mm |
| Max Media Size (Custom) | 112 mm |
| Media Sizes | Roll (1.9 - 11.2 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 2514 mm |
| Media Thickness Range | 0.0635 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Networking | Print server |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x parallel - 36 PIN mini-Centronics ¦ 1 x LAN - RJ-45 |
| Features | Audible alarm, on/off switch, rugged, firmware upgradable |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, PCT, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, CSA C22.2 No. 60950-1-03, cULus, GOST-R, ISO 9001:2008 |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities, DMX Config, DMX NetManager |
| OS Required | Microsoft Windows NT, Microsoft Windows Vista / XP |
| Service & Support | Limited warranty - parts and labour - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
| Min Operating Temperature | 4 °C |
| Max Operating Temperature | 35 °C |
| Width | 20.35 cm |
| Depth | 28.2 cm |
| Height | 18.7 cm |
| Weight | 2.4 kg |
