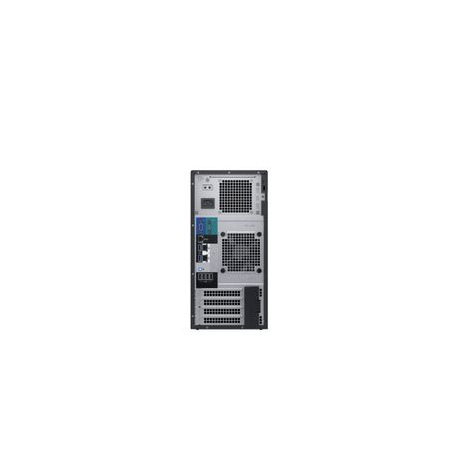

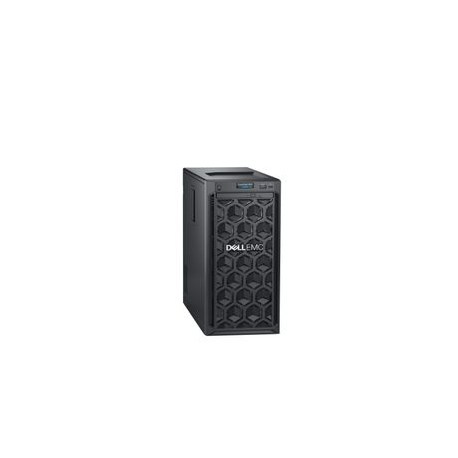

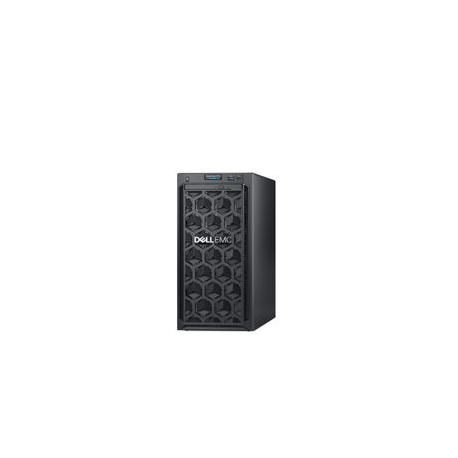

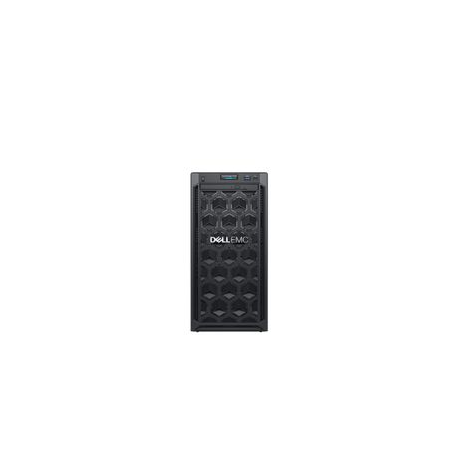

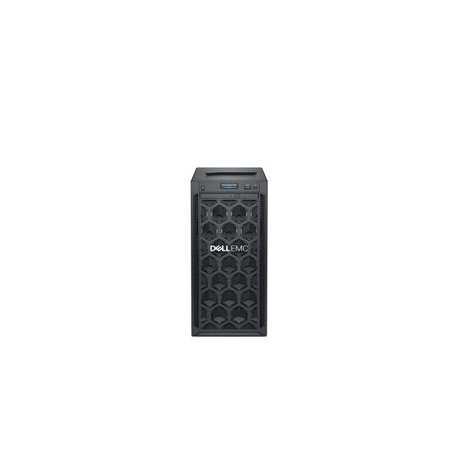

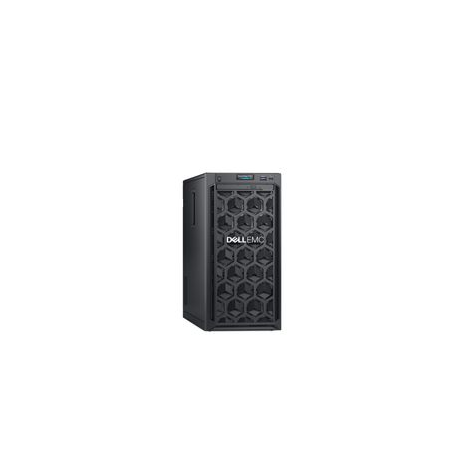

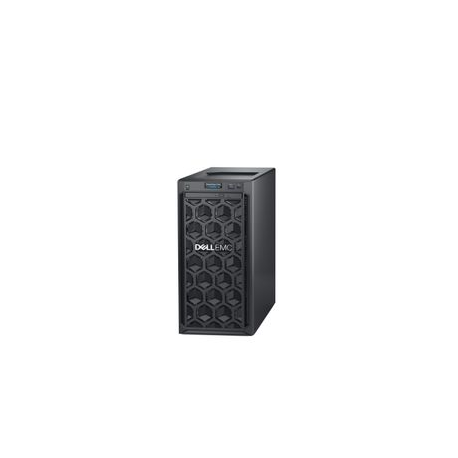

Dell EMC PowerEdge T140 - Server - MT - 1-way - 1 x Xeon E-2234 / 3.6 GHz - RAM 16 GB 3.5" bay(s) - HDD 1 TB - DVD-Writer - G200eR2 - GigE - no OS - monitor: none - black - with 3 Years Basic Onsite
images are for illustrative purposes only
| Type | Server |
| Bundled Services | 3 Years Basic Onsite |
| Product Form Factor | Mini tower |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Colour | Black |
| CPU | Intel Xeon E-2234 / 3.6 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Type | HDD |
| Capacity | 1 x 1 TB |
| Interface Type | SATA |
| Spindle Speed | 7200 rpm |
| Type | 1 |
| Storage Controller Name | Dell PERC H330 |
| Type | DVD-Writer DVD-Writer |
| Monitor Type | None. |
| Graphics Processor | Matrox G200eR2 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Interface (Bus) Type | LAN-on-motherboard (LOM) |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 (iDRAC9) |
| Bays | 4 (total) / 3 (free) x internal 3.5" ¦ 1 (total) / 0 (free) x 5.25" Slim Line |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x VGA ¦ 1 x serial ¦ 1 x management (NIC) ¦ 1 x management - micro-USB (1 in front) |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| OS Provided | No operating system |
| Weight | 11.84 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 80% |
