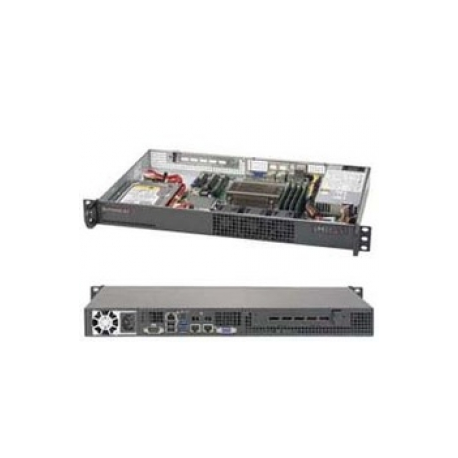

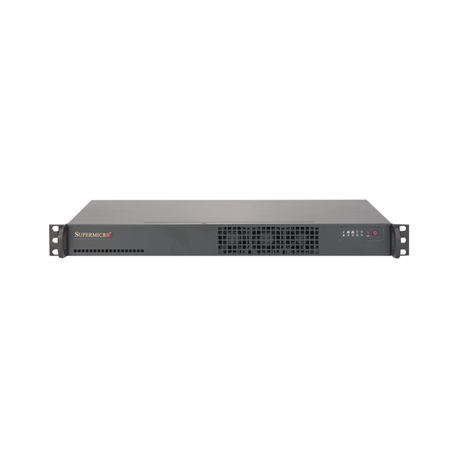

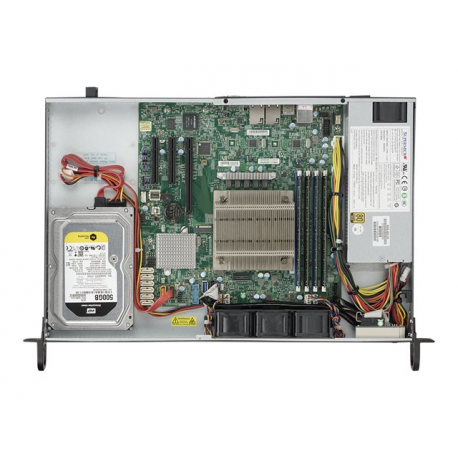

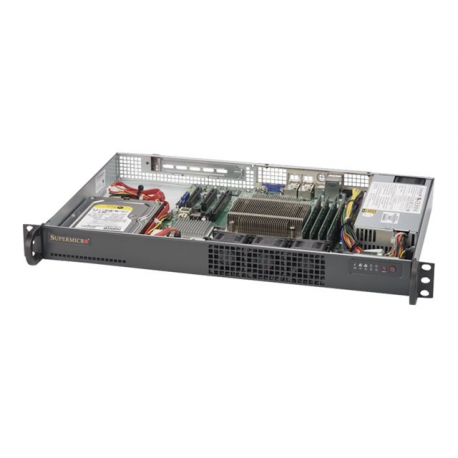

Supermicro SuperServer 5019S-L - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - no HDD - AST2400 - GigE - monitor: none - black
images are for illustrative purposes only
New
Article: 1412510 SKU: SYS-5019S-L
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Internal Bays Qty | 1 |
| Colour | Black |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel C232 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 4 (empty) |
| Features | Unbuffered |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | ACPI support, KVM over IP support |
| Bays | 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 |

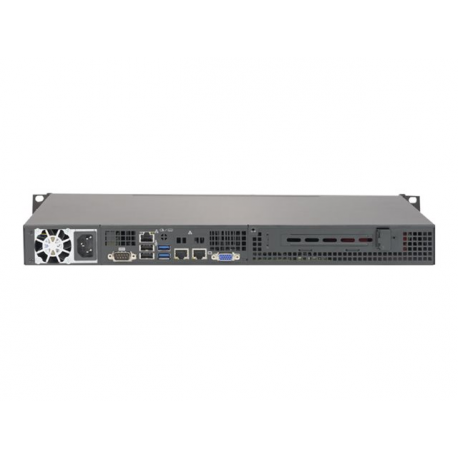

| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x serial ¦ 1 x USB 3.0 |
| Included Accessories | Air shroud |
| Cables Included | Serial ATA cable |
| Theft/Intrusion Protection | Chassis intrusion switch |
| Compliant Standards | RoHS |
| Device Type | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 350 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Power Factor Correction | Yes |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Width | 43.7 cm |
| Depth | 28.7 cm |
| Height | 4.3 cm |
| Weight | 3.83 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
