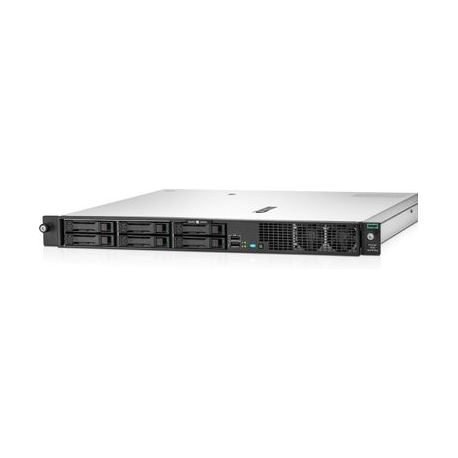

HPE ProLiant DL20 Gen10 Plus High Performance - Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2336 / 2.9 GHz - RAM 16 GB - SATA - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE - no OS - monitor: none
images are for illustrative purposes only
New
Article: 1901859 SKU: P44115-421
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Localisation | Region: Europe |
| CPU | Intel Xeon E-2336 |
| Clock Speed | 2.9 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C256 |
| Installed Size | L3 Cache - 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 16 GB / 128 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Type | No HDD |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HPE Smart Array S100i SR Software RAID |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Bays | 1 (total) / 1 (free) x external 5.25" 4 (total) / 4 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode) 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (x8 mode) |
| Interfaces | 1 x VGA 2 x LAN (Gigabit Ethernet) 1 x LAN (Gigabit Ethernet) / HP iLO 5 x USB 3.0 (2 front, 2 rear, 1 internal) |
| Included Accessories | HPE Short Friction Rail kit, 3 x system fans |
| Compliant Standards | AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Redfish API, UEFI |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 94% |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Width | 43.46 cm |
| Depth | 38.22 cm |
| Height | 4.32 cm |
| Weight | 6 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
