TP-LINK VIGI 3MP Full-Color Turret Network Camera VIGI C430 Dome, 3 MP, 2.8 mm, Power over Ethernet (PoE), H.265+/H.265/H.264+/H
images are for illustrative purposes only
New
Article: 3047353 Intrastat: 84716070 SKU: VIGI C430(2.8MM)
Pricing and stock details are available to registered users only.
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Form factor | Turret |
| Housing material | Plastic |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 107.5° |
| Lens viewing angle, vertical | 57.2° |
| Lens viewing angle, diagonal | 128.7° |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of lenses | 1 |
| Fixed focal length | 2.8 mm |
| Night vision | Yes |
| Night vision distance | 30 m |
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Frame rate | 25 fps |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Privacy masking | Yes |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |

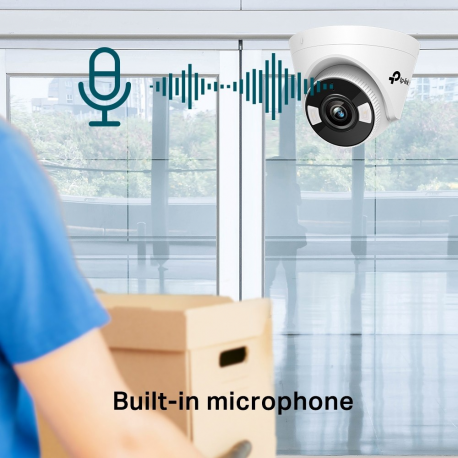

| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Built-in HDD | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Mirror | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
| Power source type | DC, PoE |
| Power consumption (max) | 4.2 W |
| Operating temperature (T-T) | -30 - 60 °C |
| Width | 123 mm |
| Depth | 83 mm |
| Height | 123 mm |
| Compliance certificates | BSMI, CE |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Sustainability compliance | Yes |
