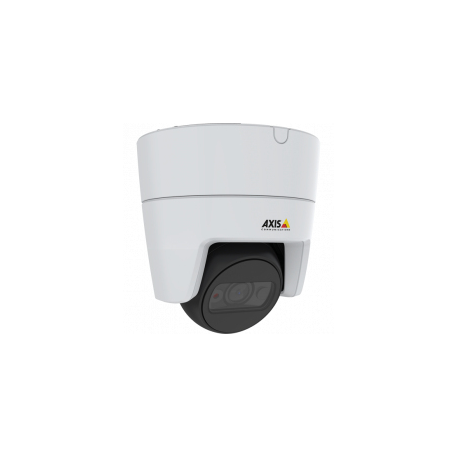

AXIS M3115-LVE - Network surveillance camera - pan / tilt - outdoor, indoor - colour (Day&Night) - 1920 x 1080 - fixed iris - fixed focal - LAN 10 / 100 - MJPEG, H.264, H.265 - PoE
images are for illustrative purposes only
New
Article: 1723157 Intrastat: 84716070 SKU: 01604-001
Pricing and stock details are available to registered users only.
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control (Pan/Tilt/Zoom) | Y |
| Day/night mode | Y |
| Infrared (IR) cut-off filter | Y |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55024, EN 55032 A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC 15 B A, KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, ICES-3(A)/NMB-3(A), VCCI A IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 4X IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471 NIST SP500-267, IPv6 USGv6 |
| Form factor | Dome |
| Mounting type | Ceiling/Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| IK code | IK08 |
| Camera pan control | Y |
| Camera tilt control | Y |
| Angle of rotation | 190° |
| Viewing angle, horizontal | 105° |
| Viewing angle, vertical | 58° |
| Tilt angle range | 0 - 60° |
| Pan range | -180 - 180° |
| Camera shutter speed | 1/33500 - 2 s |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Y |
| Number of lenses | 1 |
| Fixed focus | Y |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Night vision | Y |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | AVC,H.264,H.265,HEVC,M-JPEG |
| Frame rate | 30 fps |
| Video streaming | Y |
| Image quality adjustment | Brightness,Contrast,Sharpness |
| Privacy masking | Y |
| Bit rate control | Variable Bit Rate (VBR) |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP, LLDP |
| Quality of Service (QoS) support | Y |
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Y |
| Video motion detection | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Power source type | PoE |
| Power consumption (typical) | 3.7 W |
| Power consumption (max) | 7 W |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Height | 94 mm |
| Diameter | 10.1 cm |
| Weight | 390 g |
| Number of cameras | 1 |
