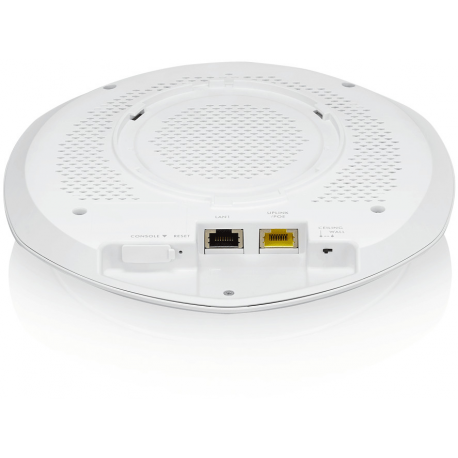

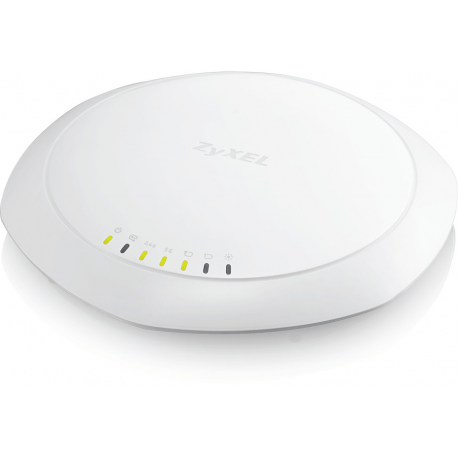

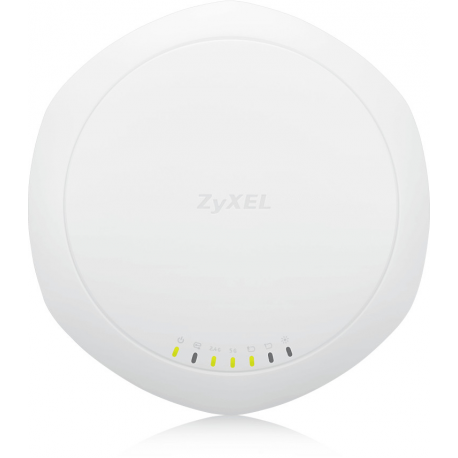

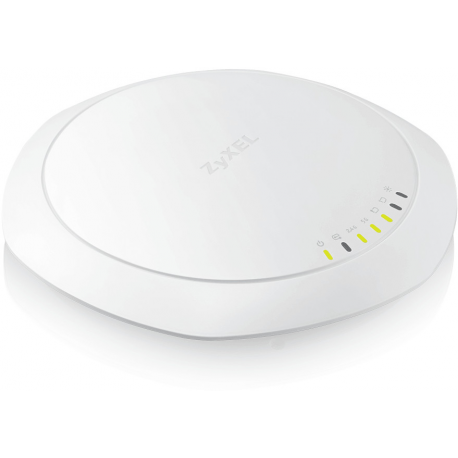

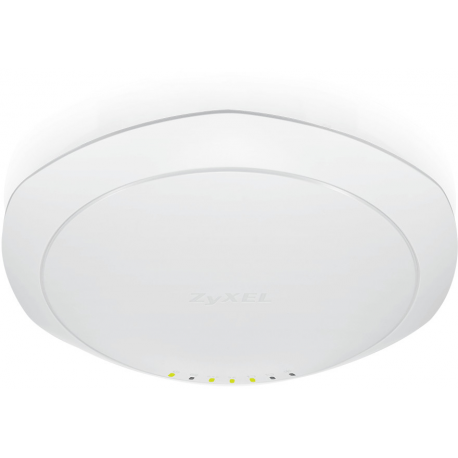

Zyxel NWA1123-AC Pro - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - wall / ceiling mountable

  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
  • Zyxel NWA1123-AC PRO - DUAL OPTIMISED 802.11AC 3X3 STANDALONE AP (WITH PASSIVE POE INJECTOR)
images are for illustrative purposes only

New

Article: 1410401 Intrastat: 85176930 SKU: NWA1123ACPRO-EU0101F
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeRadio access point
Width20.39 cm
Depth19.17 cm
Height3.47 cm
Weight445 g
LocalisationEurope
Form FactorWall / ceiling mountable
Connectivity TechnologyWireless
Data Transfer Rate1300 Mbps
Line Coding FormatDBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Remote Management ProtocolSNMP, SSH, CLI
Frequency Band2.4 GHz, 5 GHz
CapacityMaximum number of configured SSIDs: 16
FeaturesVLAN support, MAC address filtering, IPv6 support, Multiple SSID support, reset button, Maximum Ratio Combining (MRC), 3T3R MIMO technology, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, DHCP client, Cyclic Delay Diversity (CDD), Maximum Likelihood Demodulation (MLD)
Encryption AlgorithmTLS, PEAP, TTLS, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP
Authentication MethodRADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), EAP-FAST
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.3au, IEEE 802.11ab
AntennaInternal
Gain Level5 dBi
Interfaces2 x 1000Base-T (PoE) - RJ-45
Included AccessoriesPoE injector, wall/ceiling mounting plate
Cables Included1 x network cable
MTBF1,005,235 hours
Compliant StandardsEN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, EN 300 328, BSMI CNS 14336-1, EN 301489-17, EN 301 489-1, LP0002, EN 301 893
Power Over Ethernet (PoE) SupportedPoE
Power DevicePower injector
Power Consumption Operational12.48 Watt
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating10 - 90% (non-condensing)
