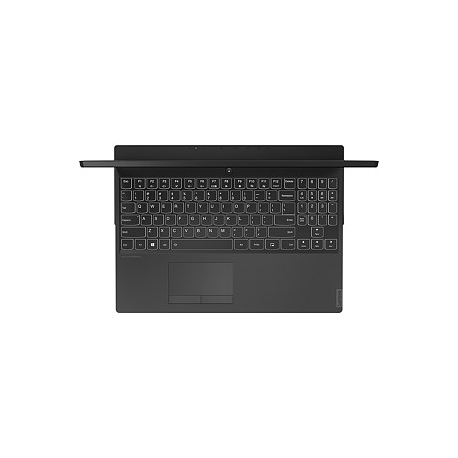

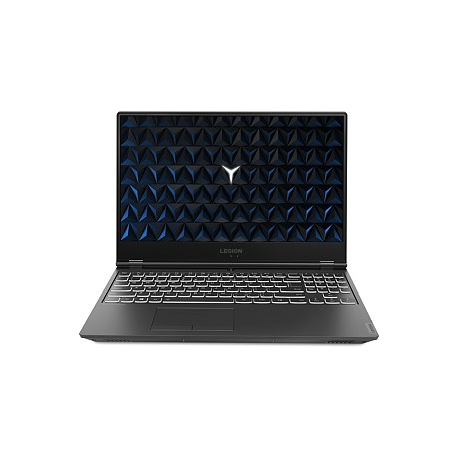

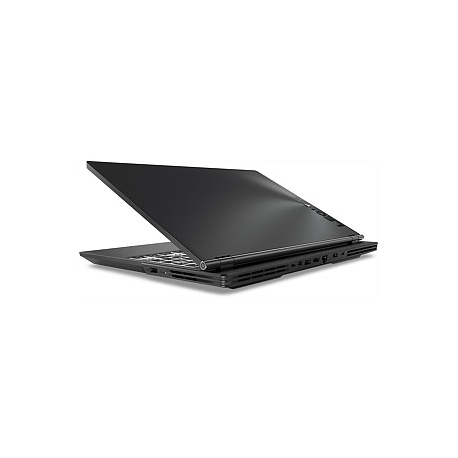

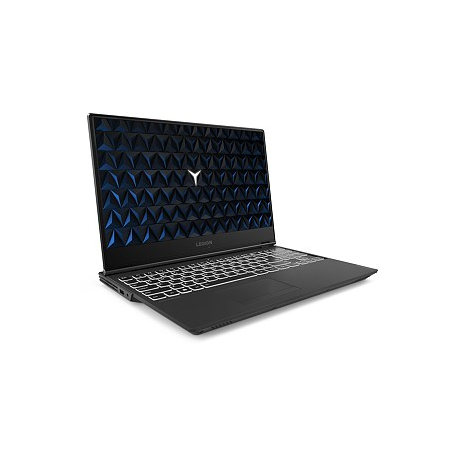

Lenovo Legion Y540-15IRH 81SX - Core i7 9750H / 2.6 GHz - Win 10 Home 64-bit - 16 GB RAM - 512 GB SSD NVMe - 15.6" IPS 1920 x 1080 (Full HD) - GF RTX 2060 / UHD Graphics 630 - Wi-Fi, Bluetooth - raven black - kbd: English
images are for illustrative purposes only
New
Article: 1677581 Intrastat: 84713000 SKU: 81SX00TSLT
Pricing and stock details are available to registered users only.
| Product Type | Notebook |
| Operating System | Windows 10 Home 64-bit Edition - English |
| CPU | Intel Core i7 (9th Gen) 9750H / 2.6 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 6-core |
| Cache | 12 MB |
| 64-bit Computing | Yes |
| Chipset | Mobile Intel HM370 |
| Features | Integrated memory controller |
| RAM | 16 GB (2 x 8 GB) |
| Max RAM Supported | 32 GB |
| Technology | DDR4 SDRAM |
| Speed | 2666 MHz |
| Rated Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
| Main Storage | 512 GB SSD - (M.2 2280) PCIe 3.0 x4 - NVM Express (NVMe) |
| Type | 15.6" - IPS |
| LCD Backlight Technology | LED backlight |
| Resolution | 1920 x 1080 (Full HD) |
| Widescreen | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 300 cd/m² |
| Features | Anti-glare, 72% colour gamut, 144 Hz refresh rate |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 2060 / Intel UHD Graphics 630 |
| Video Memory | 6 GB GDDR6 SDRAM |
| VR Ready | Yes |
| Camera | Yes - 720p |
| Resolution | 1 Megapixel |
| Sound | Stereo speakers, dual array microphone |
| Codec | Realtek ALC3287 |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Audio Features | Harman audio technology |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Keyboard Layout | English |
| Numeric Keypad | Yes |
| Features | Multi-touch touchpad, white LED backlight |
| Wireless | 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Wireless Controller | M.2 Card |
| Network Interface | Gigabit Ethernet |
| Technology | Lithium Ion |
| Capacity | 57 Wh |
| Run Time | Up to 5 hours |
| Input | AC 120/230 V (50/60 Hz) |
| Output | 230 Watt |
| Interfaces | USB 3.1 Gen 1 (Always On) ¦ 2 x USB 3.1 Gen 1 ¦ USB-C 3.1 Gen 1/DisplayPort 1.2 ¦ HDMI ¦ LAN ¦ Mini DisplayPort ¦ Headphone/microphone combo jack |
| Software Included | Microsoft Office (Trial) |
| Colour | Raven black |
| Case Material | Polycarbonate ABS |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Features | Administrator password, hard drive password, power-on password |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Included Accessories | Power adapter |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3 |
| Localization | Region: Estonia, Lithuania, Latvia |
| Dimensions (WxDxH) | 36 cm x 26.7 cm x 2.59 cm |
| Weight | 2.3 kg |
| Service & Support | Limited warranty - 2 years - pick-up and return ¦ Limited warranty - battery - 1 year |
