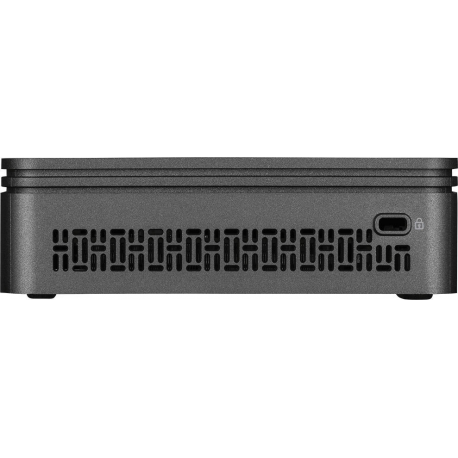

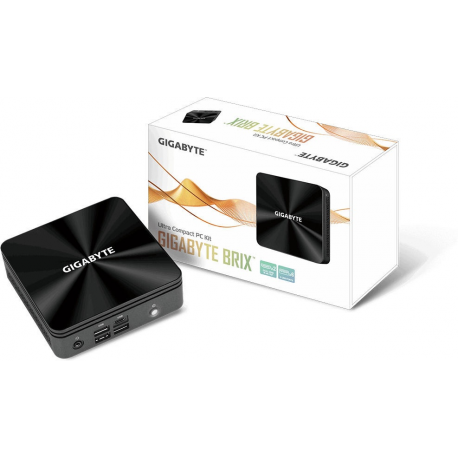

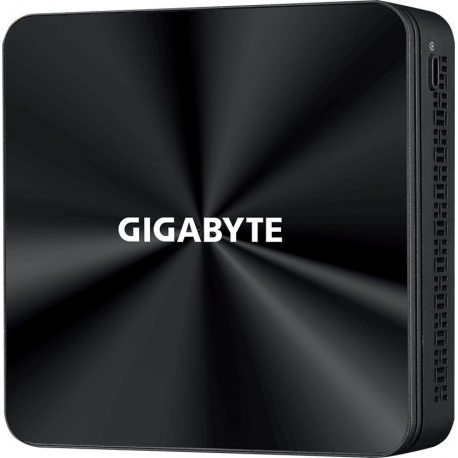

Gigabyte BRIX GB-BRi7-10710 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Core i7 10710U / 1.1 GHz - RAM 0 GB - UHD Graphics - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 4.2
images are for illustrative purposes only
New
Article: 1749941 Intrastat: 84718000 SKU: GB-BRI7-10710
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Ultra Compact PC Kit |
| CPU | Intel Core i7 (10th Gen) 10710U / 1.1 GHz |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI |
| Max Monitors Supported | 2 |
| Sound Output Mode | Stereo |
| Ethernet Controller | Intel I219-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 3168 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 |

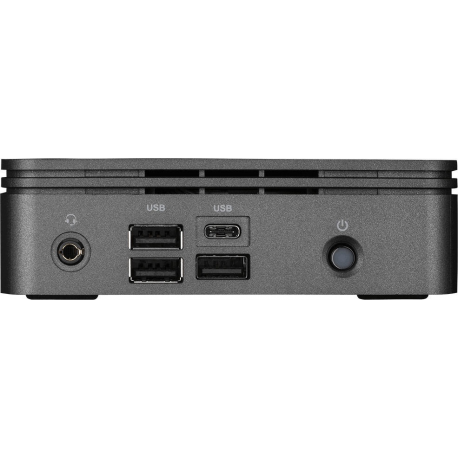

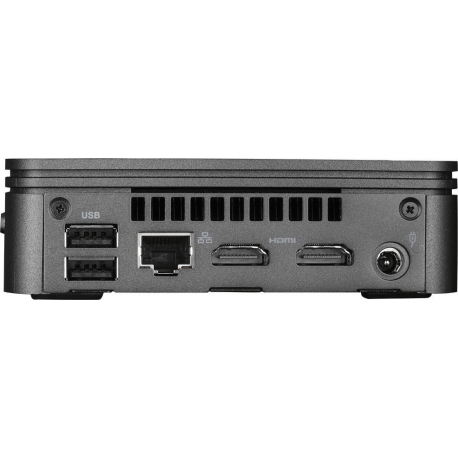

| Interfaces | 5 x USB 3.2 Gen 2 (3 front, 2 rear) 2 x HDMI 1 x USB-C 3.2 Gen 2 1 x LAN (Gigabit Ethernet) (1 in front) 1 x headphones/microphone (1 in front) |
| Included Accessories | VESA wallmount adapter |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Device Type | Power adapter |
| Nominal Voltage | AC 120/230 V |
| OS Provided | No operating system |
| Width | 11.95 cm |
| Depth | 11.95 cm |
| Height | 3.47 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
