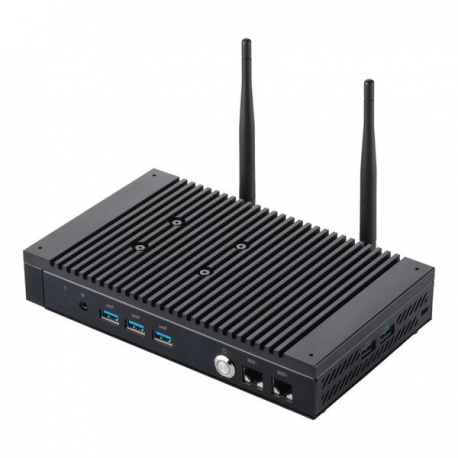

ASUS Mini PC PL64 B-SC017MN - Barebone - mini PC - 1 x Celeron 7305 / 1.1 GHz - RAM 0 GB - UHD Graphics - GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E) - WLAN: Bluetooth 5.2, 802.11a / b / g / n / ac / ax (Wi-Fi 6E) - eco black
images are for illustrative purposes only
New
Article: 3304514 Intrastat: 84718000 SKU: 90MR00V1-M000J0
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Colour | Eco black |
| CPU | Intel Celeron 7305 |
| Clock Speed | 1.1 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | L3 Cache - 8 MB |
| Cache Per Processor | 8 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Slots | 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 3 x HDMI 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 (3 in front) ¦ 2 x USB 3.1 Gen 1 (2 in front) ¦ 2 x serial (RS-232/422/485) (2 in front) ¦ 1 x audio line-out/headphones/microphone ¦ 2 x aerial |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| Width | 19.97 cm |
| Depth | 11.97 cm |
| Height | 33.9 cm |
| Weight | 1 kg |
