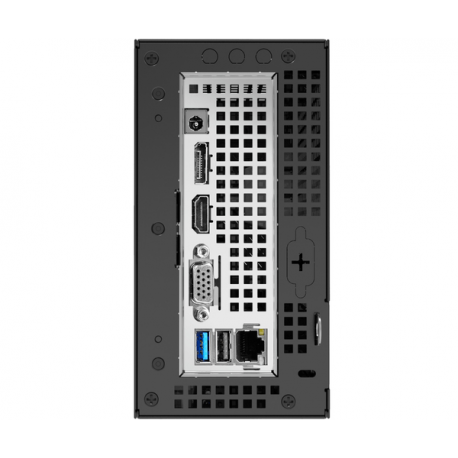

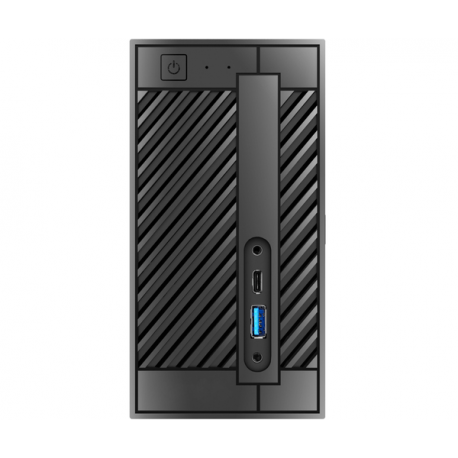

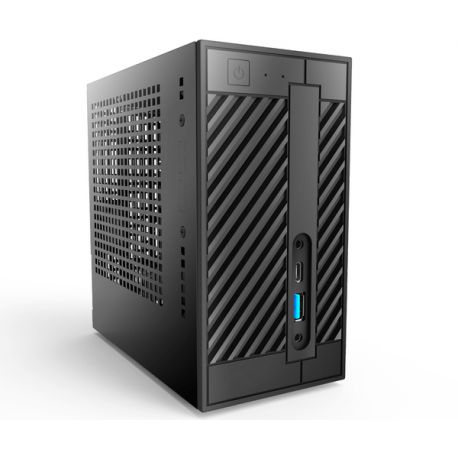

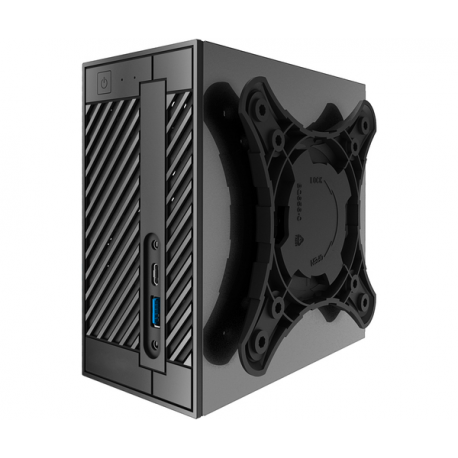

ASRock DeskMini 310 - Barebone - mini PC - LGA1151 Socket - Intel H310 - no CPU - RAM 0 GB - GigE
images are for illustrative purposes only
New
Article: 3141960 Intrastat: 84718000 SKU: 90BXG3701-A10GA0W
Pricing and stock details are available to registered users only.
| Built-in processor | N |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 3 |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| M.2 card size | 2280 |
| On-board graphics card | Y |
| Graphics card family | Intel |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Copper ethernet cabling technology | 1000BASE-T |
| LAN controller | Intel® I219-V |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Y |
| Headphone outputs | 1 |
| Combo headphone/mic port | Y |
| Number of SATA III connectors | 2 |
| DC-in jack | Y |
| Number of M.2 (M) slots | 1 |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Motherboard chipset | Intel® H310 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel Pentium G |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC adapter output voltage | 19 V |
| Operating temperature (T-T) | 0 - 35 °C |
| Width | 155 mm |
| Depth | 155 mm |
| Height | 80 mm |
