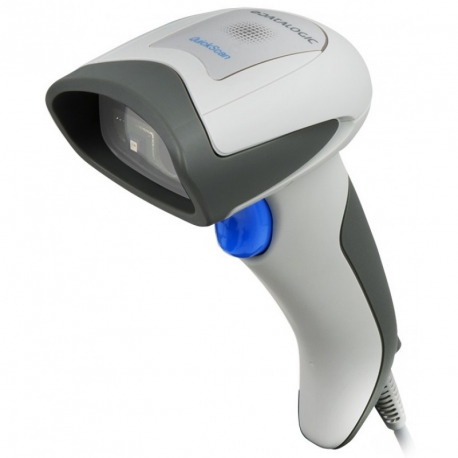

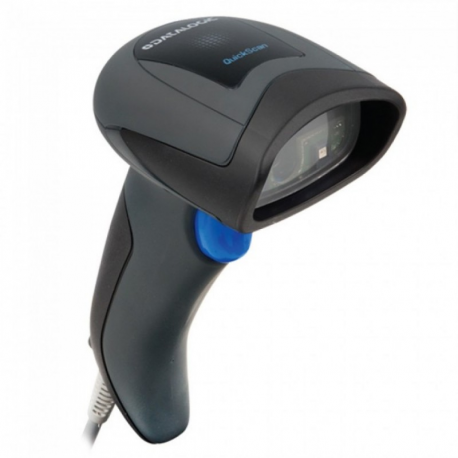

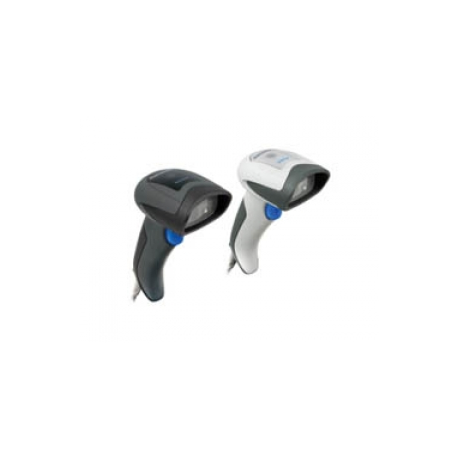

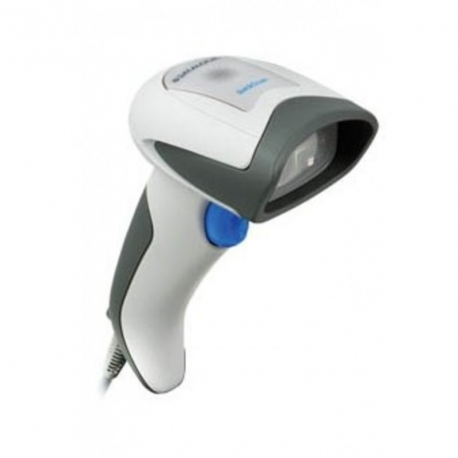

Datalogic QuickScan I QD2430 - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB
images are for illustrative purposes only
New
Article: 370063 Intrastat: 84716070 SKU: QD2430-BKK1
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | USB |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Light Source Wave Length | 610-650 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 35 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology |
| Interfaces | 1 x USB |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | RoHS, IP42 |
| Electric Current Required | 140 mA (typical), 50 mA (standby) |
| Software Included | Datalogic Aladdin |
| Width | 4.1 cm |
| Depth | 9.1 cm |
| Height | 16.3 cm |
| Weight | 145 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
