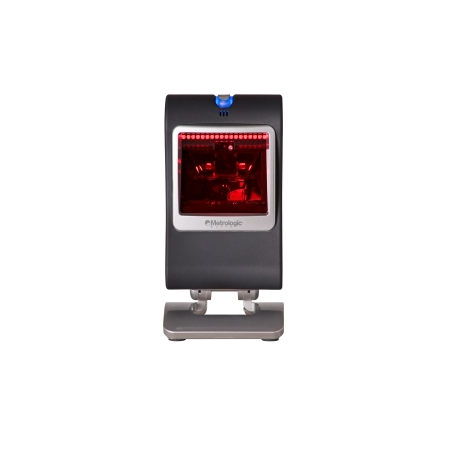

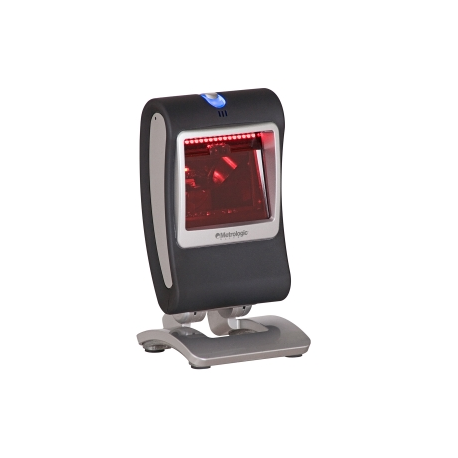

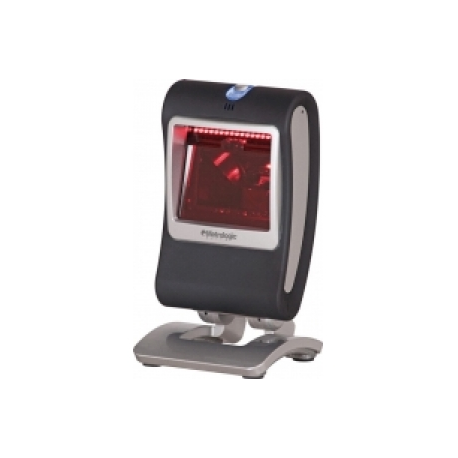

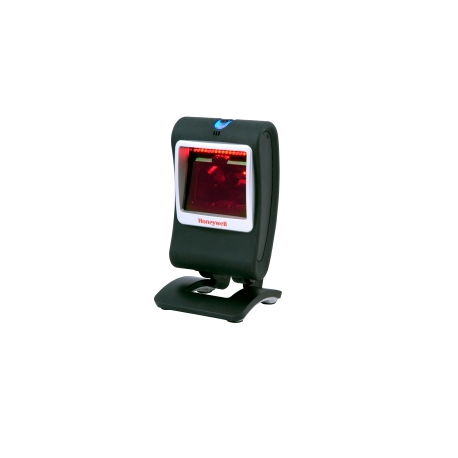

Honeywell MS7580 Genesis - Barcode scanner - desktop - 2D imager - decoded - RS-232
images are for illustrative purposes only
New
Article: 449102 Intrastat: 84716070 SKU: MK7580-30C41-02
Pricing and stock details are available to registered users only.
Honeywell MS7580 Genesis - Barcode scanner - desktop - decoded - RS-232
| Type | Barcode scanner - desktop - stationary |
| Colour | Graphite grey |
| Localisation | Europe |
| Interface Type | RS-232 |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager - Red LED |
| Light Source Wave Length | 645 nm |
| Scan Mode | Fixed projection |
| Max Working Distance | 15.8 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 70 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, Code 32, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, China Post, Trioptic Code, EAN-UCC Composite, Micro QR code, Code 93i |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Image capturing, Reduced Space Symbology (RSS), TotalFreedom, CodeSelect, CodeGate |
| Interfaces | 1 x RS-232 - DB-9 |
| Cables Included | 1 x serial cable |
| Compliant Standards | FCC Class B certified, ISO 9001, cUL, ICES-003, EN55022 Class B, RoHS, WEEE, IEC 60825-1, cULus, EN 60825-1 |
| Power Device | Power adapter - external |
| Voltage | AC 220 V |
| Width | 8.3 cm |
| Depth | 8 cm |
| Height | 15 cm |
| Weight | 340 g |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m |
